Taper Lock Bushes
Taper Lock Bushes provide a fast and reliable method for securing sprockets, pulleys, or coupling to a shaft.
The unique tapered design ensures a tight and secure fit, allowing for easy installation and removal. This versatility enables quick adjustments, making the components compatible with various shaft sizes without the need for re-boring.
Our comprehensive range of Taper Lock Bushes is designed to complement our extensive selection of couplings, pulleys, and sprockets. Available in both metric and imperial sizes, our bushes range from 1008 to 6050 and are offered in durable steel or corrosion-resistant stainless steel.
The TransDrive Taper Lock Bushes are manufactured to the highest quality standards using GG22 – 25 cast iron depending on size.
Thin wall bushes are produced from C45 steel. All surfaces are carefully machined to provide maximum contact area and transmission of torque.
Product Specifications
Taper Bush 1008 to 3030

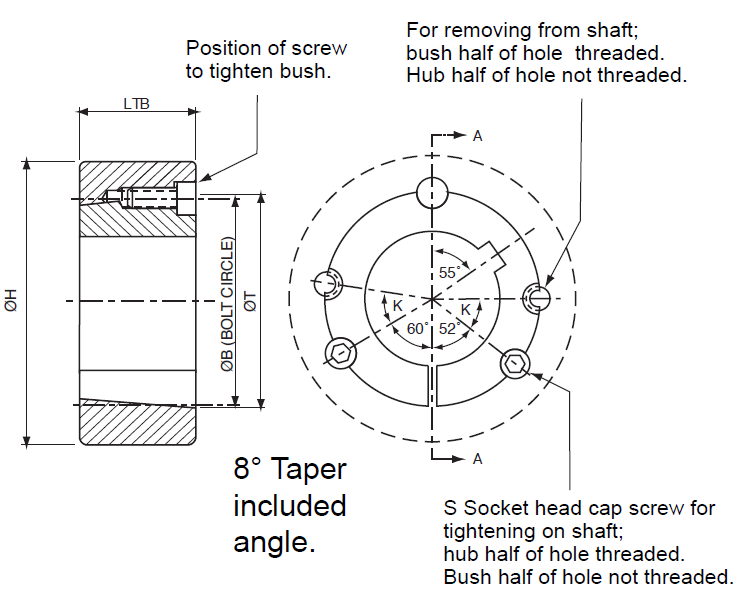

Taper Bush 3525 to 5050
| Bush Size | Ø T | LBT | Minimum HUB Dia H | ØB | S Set Screws | K | |||
|---|---|---|---|---|---|---|---|---|---|
| UTS 200 N/mm2 Gray Iron | UTS 250 N/mm2 Gray Iron | UTS 420 N/mm2 Steel | Qty. Screws | Size (Inches) | |||||
| 1008 | 35.20 | 22.3 | 59 | 54 | 51 | 33.73 | 2 | 1/4 x 1/2 | – |
| 1108 | 38.38 | 22.3 | 61 | 57 | 54 | 36.92 | 2 | 1/4 x 1/2> | – |
| 1210 | 47.62 | 25.4 | 99 | 86 | 78 | 44.44 | 2 | 3/8 x 5/8 | – |
| 1215 | 47.62 | 38.1 | 79 | 73 | 68 | 44.44 | 2 | 3/8 x 5/8 | – |
| 1310 | 50.80 | 25.4 | 100 | 88 | 80 | 47.63 | 2 | 3/8 x 5/8 | – |
| 1610 | 57.15 | 25.4 | 102 | 92 | 85 | 53.97 | 2 | 3/8 x 5/8 | – |
| 1615 | 57.15 | 38.1 | 86 | 81 | 77 | 53.97 | 2 | 3/8 x 5/8 | – |
| 2012 | 69.85 | 31.8 | 115 | 106 | 99 | 66.68 | 2 | 7/16 x 7/8 | – |
| 2517 | 85.73 | 44.5 | 125 | 119 | 113 | 82.55 | 2 | 1/2 x 1 | – |
| 2525 | 85.73 | 63.5 | 115 | 111 | 108 | 82.56 | 2 | 1/2 x 1 | – |
| 3020 | 107.96 | 50.8 | 154 | 146 | 140 | 101.60 | 2 | 5/8 x 1.1/4 | – |
| 3030 | 107.96 | 76.2 | 141 | 136 | 132 | 101.60 | 2 | 5/8 x 1.1/4 | – |
| 3525 | 127.00 | 63.5 | 206 | 191 | 178 | 122.68 | 3 | 1/2 x 1.1/2 | 40° |
| 3535 | 127.00 | 89.0 | 185 | 176 | 168 | 122.68 | 3 | 1/2 x 1.1/2 | 40° |
| 4030 | 146.05 | 76.2 | 220 | 207 | 197 | 140.72 | 3 | 5/8 x 1.3/4 | 40° |
| 4040 | 146.05 | 101.5 | 203 | 195 | 188 | 140.72 | 3 | 5/8 x 1.1/4 | 40° |
| 4535 | 161.93 | 89.0 | 221 | 212 | 205 | 455.70 | 3 | 3/4 x 2 | 40° |
| 4545 | 161.93 | 114.3 | 211 | 205 | 200 | 155.70 | 3 | 3/4 x 2 | 40° |
| 5040 | 177.80 | 101.6 | 236 | 229 | 223 | 170.69 | 3 | 7/8 x 2.1/4 | 37° |
| 5050 | 177.80 | 127.0 | 230 | 223 | 219 | 170.69 | 3 | 7/8 x 2.1/4 | 37° |
