Locking Assemblies

The TransDrive locking assemblies enable swift and efficient shaft connections, saving time by eliminating the need for keys.

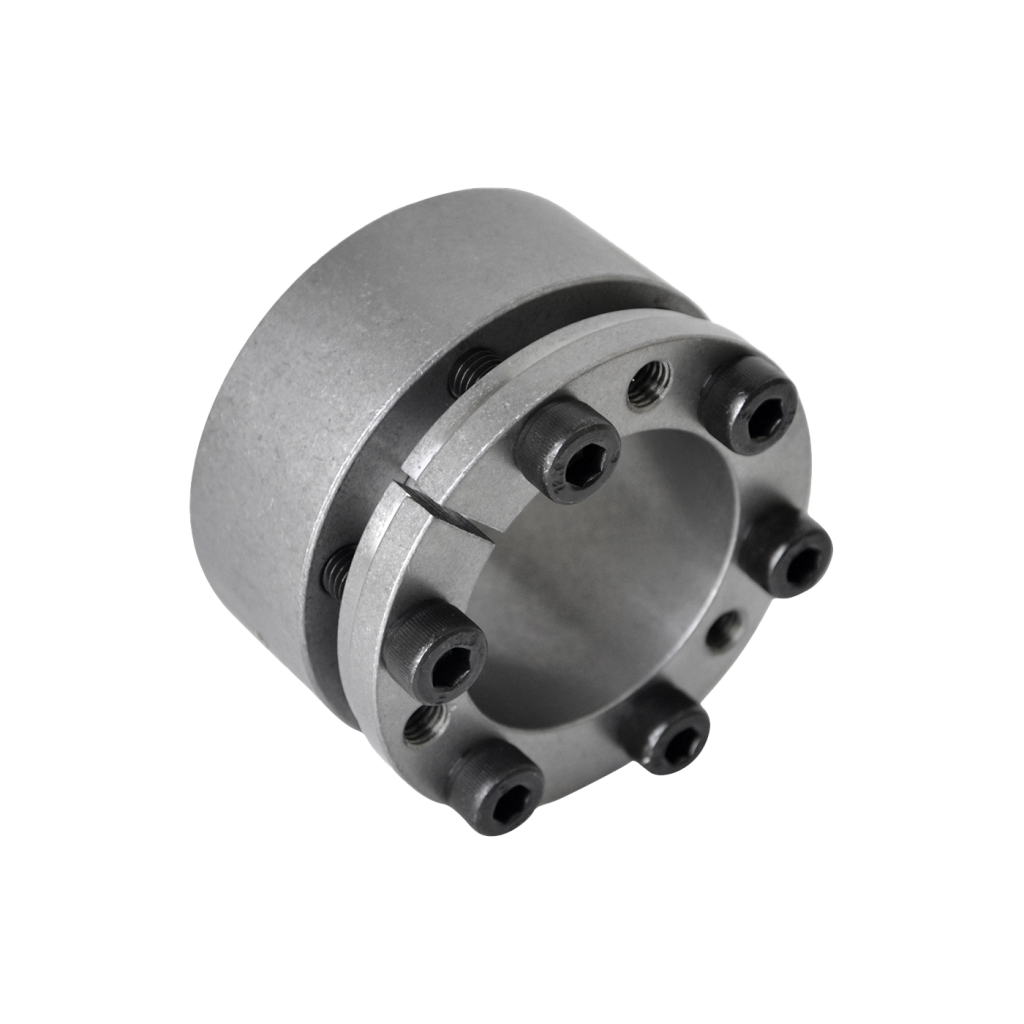

The TransDrive Locking Assembly, also known as a Self-Locking Unit, provides a high-strength, keyless connection for industrial applications requiring reliable torque transmission and resistance to thrust, bending, and radial loads. By converting locking screw clamp loads into radial contact pressures, it creates a zero-backlash interference fit, ensuring a secure, wear-resistant connection that wont loosen or degrade – even under high-cycle, fluctuating, or reversing loads.

When the locking unit bolts are tightened, the plates engage with both the shaft and the inner circumference of the mounted component, evenly distributing pressure for a secure and unform fit. The eliminates the need for keyways or grub screws, reducing machining costs and preventing common issues like wear or component damage. Designed for high-performance, maintenance-free operation, TransDrive Locking Assemblies provide a superior alternative to traditional mounting technologies, delivering long-term durability and precision in demanding applications.

our range

Type-01
Type-02
Type-04
Type-07
Type-19

Product Specifications

Type-01

Dimensions					Performance		Pressures		Clamping Screws DIN912-12.9
d	D	L1	L2	L	Transmissible Axial Force KN	Transmissible Torque nm	shaft Surface Pressure N/mm2	Hub Surface Pressure N/mm2	No.	Size	Screws Tightening Torque Nm
70	110	24	28	38	153	5345	268	171	14	M10x25	69
75	115	24	28	38	153	5727	250	163	14	M10x25	69
80	120	24	28	38	153	6108	235	156	14	M10x25	69
85	125	24	28	38	175	7417	252	172	16	M10x25	69
90	130	24	28	38	175	7854	238	165	16	M10x25	69
95	135	24	28	38	196	9326	254	179	18	M10x25	69
100	145	26	33	45	227	11362	258	178	14	M12x30	123.3
110	155	26	33	45	227	12498	234	166	14	M12x30	123.3
120	165	26	33	45	260	15578	245	178	16	M12x30	123.3
130	180	34	38	50	325	21095	217	156	20	M12x35	123.3
140	190	34	38	50	357	24993	221	163	22	M12x35	123.3
150	200	34	38	50	390	29217	225	169	24	M12x35	123.3
160	210	34	38	50	422	33756	229	174	26	M12x35	123.3
170	225	38	44	58	465	39483	212	160	22	M14x40	187
180	235	38	44	58	507	45606	218	167	24	M14x40	187
190	250	46	52	66	591	56163	199	152	28	M14x45	187
200	260	46	52	66	633	63342	203	156	30	M14x45	187
210	275	oA	OA	OA	OA	OA	OA	OA	OA	OA	OA
220	285	50	56	72	745	81960	200	154	26	M16x50	290
240	305	50	56	72	860	103162	211	166	30	M16x50	290
250	315	OA	OA	OA	OA	OA	OA	OA	OA	OA	OA
260	325	50	56	72	974	126669	221	177	34	M16x50	290
320	405	72	78	98	1651	264108	211	167	36	M20x70	580

type-02

Dimensions								Passing Axis Pressure	Passing Torque	Contracting Pressure		Locking Screw DIN912-12.9
Dimensions								Passing Axis Pressure	Passing Torque	Axis P N/mm2	Hub P1 N/mm2	Quality	Size	Locking Torque Ts Nm
d	D	L1	L2	L3	L	D2	D1	Ft KN	Mt Nm	Axis P N/mm2	Hub P1 N/mm2	Quality	Size	Locking Torque Ts Nm
8	15	12	21	24	28	28	25	10	39	299	159	4	M4x10	5.2
9	16	14	23	27	31	32	28	10	44	227	128	4	M4x12	5.2
10	16	14	23	27	31	32	28	10	49	205	128	4	M4x12	5.2
11	18	14	23	27	31	34	30	10	53	186	114	4	M4x12	5.2
12	18	14	23	27	31	34	30	10	58	171	114	4	M4x12	5.2
13	23	14	26	27	31	38		10	63	144	81	4	M4x12	5.2
14	23	14	23	27	31	39	35	10	68	146	89	4	M4x12	5.2
15	24	16	29	36	42	45	40	16	120	196	123	3	M4x18	17
16	24	16	29	36	42	45	40	16	128	184	123	3	M4x18	17
17	26	18	31	38	44	45		21	190	197	129	4	M4x18	17
18	26	18	31	38	44	47	42	21	191	194	134	4	M4x18	17
19	27	18	31	38	44	48	43	21	202	183	129	4	M4x18	17
20	28	18	31	38	44	49	44	21	213	174	124	4	M4x18	17
22	32	25	38	45	51	54	48	21	234	114	78	4	M4x18	17
24	34	25	38	45	51	56	50	21	255	105	74	4	M4x18	17
25	34	25	38	45	51	56	50	21	266	100	74	4	M4x18	17
28	39	25	38	45	51	61	55	27	373	112	81	5	M4x18	17
30	41	25	38	45	51	63	57	32	480	126	92	6	M4x18	17
32	43	30	43	50	56	65	59	32	511	98	73	6	M4x18	17
35	47	30	43	50	56	69	63	43	747	120	89	8	M4x18	17
38	50	30	43	50	56	72	66	43	811	110	84	8	M4x18	17
40	53	32	45	52	58	75	69	48	959	110	83	9	M4x18	17
42	55	32	45	52	58	77	71	48	1007	105	80	9	M4x18	17
45	59	40	56	64	72	85	79	79	1781	130	99	8	M4x22	42
48	62	40	56	64	72	88	82	79	1900	122	94	8	M4x22	42
50	65	50	66	74	82	92	85	99	2473	117	90	10	M4x22	42
55	71	50	66	74	82	98	91	99	2721	106	82	10	M4x22	42
60	77	50	66	74	82	104	97	99	2968	97	76	10	M4x22	42
65	84	50	66	74	82	111	104	99	3215	90	69	10	M4x22	42
70	90	60	80	91	101	122	115	127	4430	89	69	8	M4x25	84
75	95	60	80	91	101	126	119	142	5338	93	74	9	M4x25	84
80	100	65	85	96	106	131	124	190	7595	108	86	12	M4x25	84
85	106	65	85	96	106	137	130	190	8069	101	81	12	M4x25	84
90	112	65	85	96	106	143	136	222	9968	112	90	14	M4x25	84
95	120	65	85	96	106	153	144	222	10522	106	84	14	M4x25	84
100	125	65	89	102	114	162	153	273	13651	124	99	12	M4x30	145
110	140	70	94	107	119	177	168	273	15016	105	82	12	M4x30	145
120	155	90	114	127	139	195	185	364	21844	99	77	16	M4x30	145
130	165	90	114	127	139	205	195	364	23664	92	72	16	M4x30	145
140	175	90	114	127	139	215	205	364	25485	85	68	16	M4x30	145
150	185	90	114	127	139	225	215	364	27305	80	64	16	M4x30	145

Type-04

Dimensions						Performance		Pressure		Clamping Screws DIN912-12.9
d	D	L1	L2	L3	L	Transmissible Axial Force Kn	Transmissible Torque Nm	Shaft Surface Pressure M/mm2	Hub Surface Pressure N/mm2	No.	Size	Screws Tightening Torque Nm
19	47	26	31	39	45	332	32	193	78	4	M6x25	17
20	47	26	31	39	45	349	32	183	78	4	M6x25	17
22	47	26	31	39	45	383	32	166	78	4	M6x25	17
24	50	26	31	39	45	629	48	229	110	6	M6x25	17
25	50	26	31	39	45	654	48	220	110	6	M6x25	17
28	55	26	31	39	45	733	48	196	100	6	M6x25	17
30	55	26	31	39	45	785	48	183	100	6	M6x25	17
32	60	26	31	39	45	1116	65	229	122	8	M6x25	17
35	60	26	31	39	45	1220	65	209	122	8	M6x25	17
38	65	26	31	39	45	1325	65	193	113	8	M6x25	17
40	65	26	31	39	45	1395	65	183	113	6	M6x25	17
42	75	30	36	47	47	1982	87	204	115	6	M8x30	41
45	75	30	36	47	47	2123	87	191	115	6	M8x30	41
48	80	30	36	47	47	2265	87	179	107	6	M8x30	41
50	80	30	36	47	47	2359	87	172	107	6	M8x30	41
55	85	30	36	47	47	3458	116	208	135	8	M8x30	41
60	90	30	36	47	47	3772	116	191	127	8	M8x30	41
65	95	30	36	47	47	4087	116	176	120	8	M8x30	41
70	110	40	36	57	67	7136	189	199	127	8	M10x35	83
75	115	40	46	62	72	7645	189	186	121	8	M10x35	83
80	120	40	46	62	72	8155	189	174	116	8	M10x35	83
85	125	40	46	62	72	10831	236	205	139	10	M10x35	83
90	130	40	46	62	72	11469	236	193	134	10	M10x35	83
95	135	40	46	62	72	12106	236	183	129	10	M10x35	83
100	145	46	52	77	89	14837	275	176	121	8	M10x35	145

Type-07

Dimensions							Performance		Pressure		Clamping Screws DIN912-12.9
Dimensions							Performance		Shaft Surface Pressure N/mm2	Hub Surface Pressure N/mm2	No.	Size	Screws Tightening Torque Nm
d	D	D1	L1	L2	L3	L	Transmissible Axial Force Kn	Transmissible Torque Nm	Shaft Surface Pressure N/mm2	Hub Surface Pressure N/mm2	No.	Size	Screws Tightening Torque Nm
20	47	56	17	22	28	34	26	256	222	94	5	M6x20	17
25	50	59	17	22	28	34	31	383	213	106	6	M6x20	17
30	55	64	17	22	28	34	31	460	177	97	6	M6x20	17
35	60	69	17	22	28	34	41	716	203	118	8	M6x20	17
38	65	74	17	22	28	34	41	778	187	109	8	M6x20	17
40	65	74	17	22	28	34	41	819	178	109	8	M6x20	17
45	75	84	20	25	33	41	65	1458	212	127	7	M8x25	41
48	80	87	20	25	33	41	65	OA	200	120	7	M8x25	41
50	80	89	20	25	33	41	65	1620	191	119	7	M8x25	41
55	85	94	20	25	33	41	74	2037	199	129	8	M8x25	41
60	90	99	20	25	33	41	74	2223	182	121	8	M8x25	41
65	95	104	20	25	33	41	83	2710	189	129	9	M8x25	41
70	110	119	24	30	40	50	120	4203	211	134	8	M10x30	83
75	115	124	24	30	40	50	120	4754	197	128	8	M10x30	83
80	120	129	24	30	40	50	120	4804	184	123	8	m10x30	83
85	125	134	24	30	40	50	135	5742	195	133	9	m10x30	83
90	130	139	24	30	40	50	135	6080	184	128	9	m10x30	83
95	135	144	24	30	40	50	150	7131	194	137	10	m10x30	83
100	145	154	26	32	44	56	175	8732	198	137	8	M12x35	145
110	155	164	26	32	44	56	175	9605	180	128	8	M12x35	145
120	165	174	26	32	44	56	196	11787	186	135	9	M12x35	145
130	180	189	34	40	52	64	262	17024	175	126	12	M12x35	145
140	190	199	34	40	54	68	267	18703	166	122	9	M14x40	230
150	200	209	34	40	54	68	297	22259	172	129	10	M14x40	230
160	210	219	34	40	54	68	326	26119	177	135	11	M14x40	230
170	225	234	44	50	64	78	356	32076	140	106	12	M14x40	230
180	235	244	44	50	64	78	356	32057	133	102	12	M14x40	230
200	260	oA	44	50	64	78	356	OA	OA	OA	OA	M14x40	230
80	120	129	24	30	40	50	120	4804	184	123	8	m10x30	83
85	125	134	24	30	40	50	135	5742	195	133	9	m10x30	83
90	130	139	24	30	40	50	135	6080	184	128	9	m10x30	83
95	135	144	24	30	40	50	150	7131	194	137	10	m10x30	83
100	145	154	26	32	44	56	175	8732	198	137	8	M12x35	145
110	155	164	26	32	44	56	175	9605	180	128	8	M12x35	145
120	165	174	26	32	44	56	196	11787	186	135	9	M12x35	145
130	180	189	34	40	52	64	262	17024	175	126	12	M12x35	145
140	190	199	34	40	54	68	267	18703	166	122	9	M14x40	230
150	200	209	34	40	54	68	297	22259	172	129	10	M14x40	230
160	210	219	34	40	54	68	326	26119	177	135	11	M14x40	230
170	225	234	44	50	64	78	356	32076	140	106	12	M14x40	230
180	235	244	44	50	64	78	356	32057	133	102	12	M14x40	230
200	260	oA	44	50	64	78	356	OA	OA	OA	OA	M14x40	230

Type-19

Dimensions					Performance		Pressure		Clamping Screws DIN912-12.9
Dimensions					Performance		Shaft Surface Pressure N/mm2	Hub Surface Pressure N/mm2	No.	Size	Screws Tightening Torque Nm
d	D	L1	L2	L	Transmissible Axial Force KN	Transmissible Torque Nm	Shaft Surface Pressure N/mm2	Hub Surface Pressure N/mm2	No.	Size	Screws Tightening Torque Nm
25	55	46	40	32	802	59	292	100	6	m6x35	17
28	55	46	40	32	899	59	261	100	6	m6x35	17
30	55	46	40	32	962	59	243	100	6	m6x35	17
35	60	60	54	44	1308	69	172	77	7	m6x35	17
38	75	62	54	44	2562	125	285	112	7	m8x45	41
40	75	62	54	44	2697	125	271	112	7	m8x50	41
42	75	62	54	44	2832	125	258	112	7	m8x50	41
45	75	62	54	44	3034	125	241	112	7	m8x50	41
48	80	72	64	56	3701	143	199	94	8	m8x55	41
50	80	72	64	56	3855	143	191	94	8	m8x55	41
55	85	72	64	56	4769	161	196	99	9	m8x55	41
60	90	72	64	56	5780	178	199	104	10	m8x55	41
65	95	72	64	56	6263	178	184	99	10	m8x55	41
70	110	88	78	70	10933	289	28	111	10	m10x60	83
75	115	88	78	70	11714	289	203	106	10	m10x60	83
80	120	88	78	70	13754	318	209	112	11	m10x60	83
85	125	88	78	70	15932	347	215	117	12	m10x60	83
90	130	88	78	70	16870	347	203	112	12	m10x60	83
95	135	88	78	70	17807	347	192	108	12	m10x60	83
100	145	112	100	90	25002	463	195	105	11	m12x80	145
