Type S with Sprocket

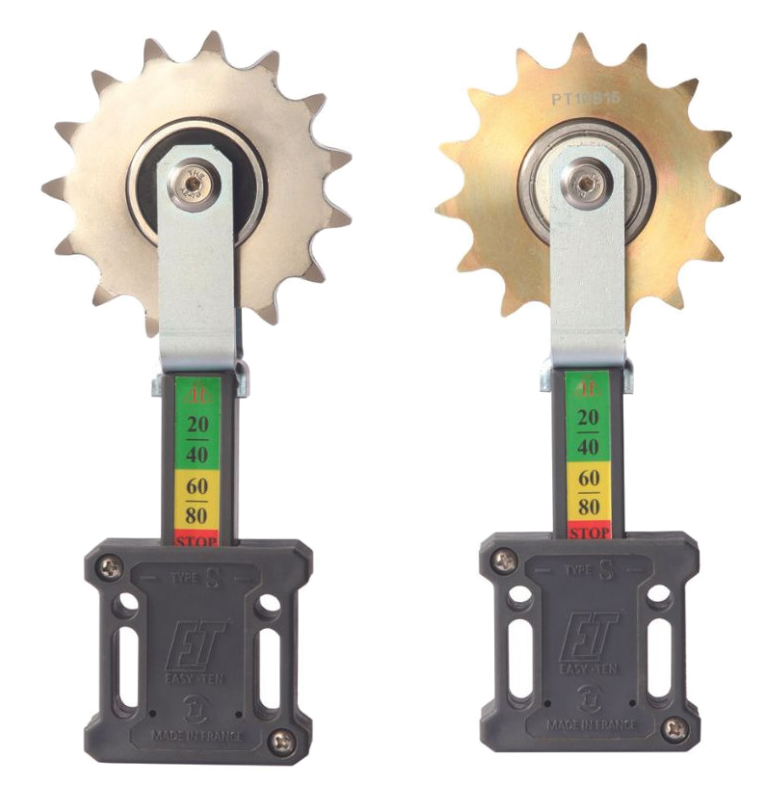

The TransDrive Easy Ten Type S with Sprocket is a high-performance industrial chain tensioner engineered for heavy-duty applications where precise chain guidance and minimal wear are essential. Instead of a sliding block or roller, this model features a zinc-plated steel sprocket mounted on an enlarged, high-quality bearing that delivers smooth rotation, reduced friction, and enhanced durability under continuous operation.
The sprocket design offers superior chain engagement and is available in a range of sizes compatible with various British Standard simplex and duplex chains – including 06B1, 06B2, 08B1, and 08B2 – ensuring a precise fit based on chain pitch and width. This configuration is particularly effective in conveyor systems and power transmission setups that demand accurate alignment, low maintenance, and extended chain life, making it a reliable solution for even the most demanding industrial environments.
features
- Heavy tension as standard, with an optional light tension version available.
- Sprocket ensures precise and low-friction chain guidance, ideal for higher tension and speeds up to 60 m/min.
- Main body and arm constructed from high-strength materials for industrial reliability.
- Fully compatible with a wide range of chain sizes and configurations.
- Easy installation and interchangeable with other common tensioner types.

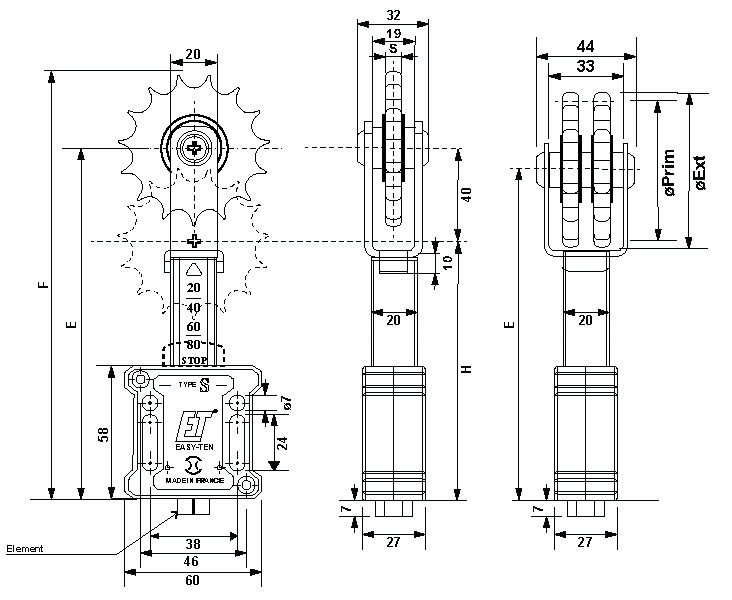

Product Specifications
Size | Stroke (m/m) | ||||
---|---|---|---|---|---|
40 | 30 | 20 | 10 | 0 | |
L | 60 | 80 | 100 | 120 | 140 |
H | 100 | 140 | 170 | 200 | 240 |


Steel | Stainless Steel | Z | Chain | S | OD | PCD | F | E | H | |
---|---|---|---|---|---|---|---|---|---|---|
mm | BS | |||||||||
ETRX-06B1H | ETRXI-06B1H | 15 | 9.525 | 06 B1 | 5.3 | 49.3 | 45.81 | 160 | 135 | 95 |
ETRX-06B2H | ETRXI-06B2H | 15 | 9.525 | 06 B2 | 5.3 | 49.3 | 45.81 | 168 | 143.5 | 103.5 |
ETRX-08B1H | ETRXI-08B1H | 15 | 12.7 | 08 B1 | 7.2 | 65.5 | 61.09 | 186 | 153.5 | 113.5 |
ETRX-08B2H | ETRXI-08B2H | 15 | 12.7 | 08 B2 | 7.2 | 65.5 | 61.09 | 176 | 143.5 | 103.5 |
ETRX-10B1H | ETRXI-10B1H | 15 | 15.8 | 10 B1 | 9.1 | 83 | 76.36 | 195 | 153.5 | 113.5 |
