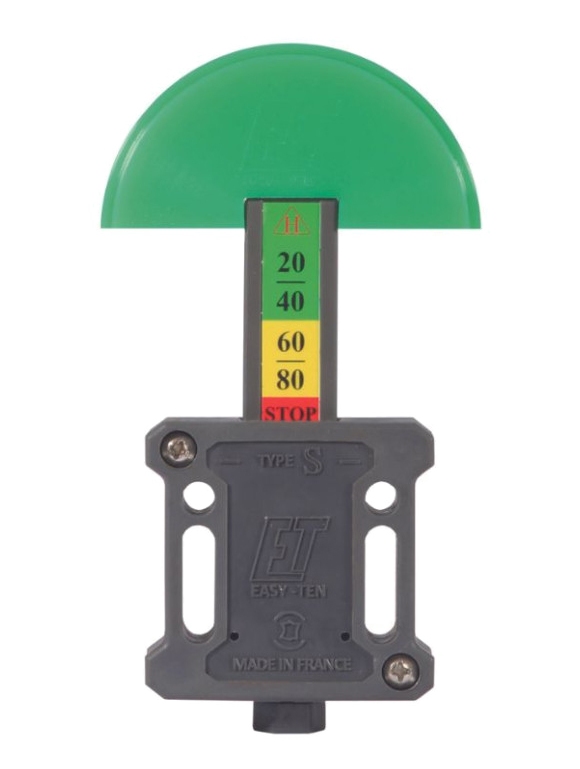

Type S with SC Sliding Block

The TransDrive Easy Ten Type S with sliding block is a robust industrial chain tensioning device specifically engineered for demanding, heavy-duty applications. At its core is a durable semi-circular (SC) profile sliding block made from high-density polyethylene (HD 1000, green), which delivers excellent excellent low-friction performance and exceptional wear resistance.

The tensioner’s main body and support column are manufactured from PA6 polyamide reinforced with 30% fibreglass, providing superior mechanical strength and long-lasting durability under load. To ensure reliability in harsh operating environments, all additional components – including the spring and fixings – are constructed from corrosion-resistant stainless steel (INOX 304L).

Ideal for conveyor systems and power systems and power transmission setups, the Easy Ten Type S effectively maintains optimal chain tension, reduces vibration, minimises wear, and significantly extends the operational life of chain-driven equipment.

Features

  • Available in heavy (high voltage, 100-240 N) or light (low voltage, 60-140 N) spring tension versions.
  • Suitable for simplex, duplex, and triplex chains, with a 40 mm tensioning stroke.
  • Interchangeable with common industry tensioner sizes and compatible with a wide range of chain sizes (04B to 24B).
  • The SC (semi-circular) sliding block style is ideal for chain angles up to 90°, providing smooth and reliable chain guidance.

Product Specifications

Simplex Chain

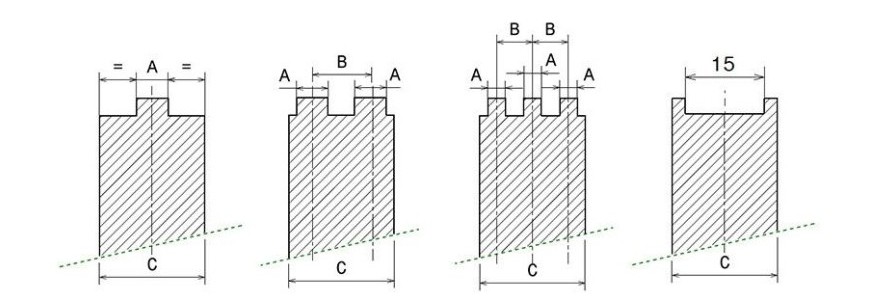

Part No.ChainABC
ET-S06B1H06 B1520
ET-S06B1UH06 B11520
ET-S08B1H08 B1720
ET-S10B1H10 B1920
ET-S12B1H12 B11120
All measurements in mm
Duplex Chain
Part No.ChainABC
ET-S06B2H06 B2510.2420
ET-S08B2H08 B2713.9220
ET-S10B2H10 B2919.5920
ET-S12B1H12 B11120
All measurements in mm
Triplex Chain
Part No.ChainABC
ET-S06B3H06 B3510.2430
ET-S08B3H08 B3713.9235
All measurements in mm
SizeStroke (m/m)
403020100
L6080100120140
H100140170200240
All measurements of Force measured in Newtons

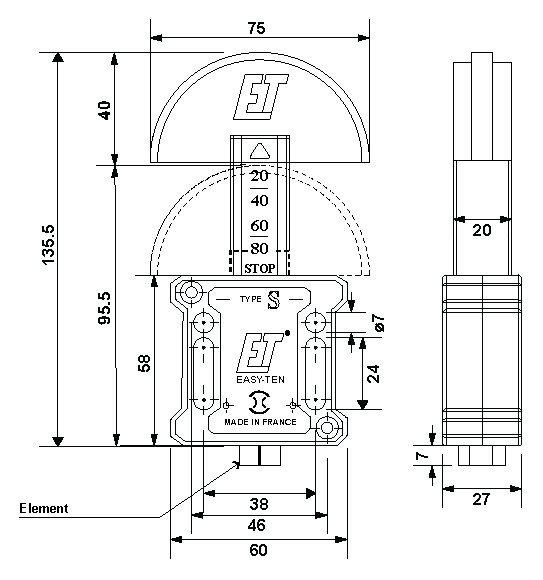

Easy Ten Type S
