Type S with Roller

The TransDrive Easy Ten Type S with Roller is a heavy-duty industrial chain tensioner specifically designed for applications where low friction and high-speed operation are critical. Unlike the sliding block version, this model features a durable polyamide (nylon) roller that provides smooth, rolling contact with the chain, significantly reducing resistance, wear, and heat generation during operation.

This makes it especially well-suited for high-speed conveyor systems and dynamic power transmission applications, where consistent chain guidance and reliable tensioning are essential. Engineered for long-lasting performance and minimal maintenance, the Easy Ten Type S with Roller ensures smooth, efficient operation even under demanding industrial conditions.

Features

  • Polyamide roller with an outside diameter of 40 mm, suitable for high-speed applications up to 8,000 rpm.
  • Heavy tension as standard, with an optional light tension version available.
  • Main body and column constructed from reinforced polyamide for strength and durability.
  • Compatible with various chain sizes and configurations (simplex, duplex, triplex).
  • Provides consistent chain tension, reduces vibration, and extends chain and sprocket life.

Product Specifications

SizeStroke (m/m)
403020100
l6080100120140
h100140170200240
All measurements of Force measured in Newtons

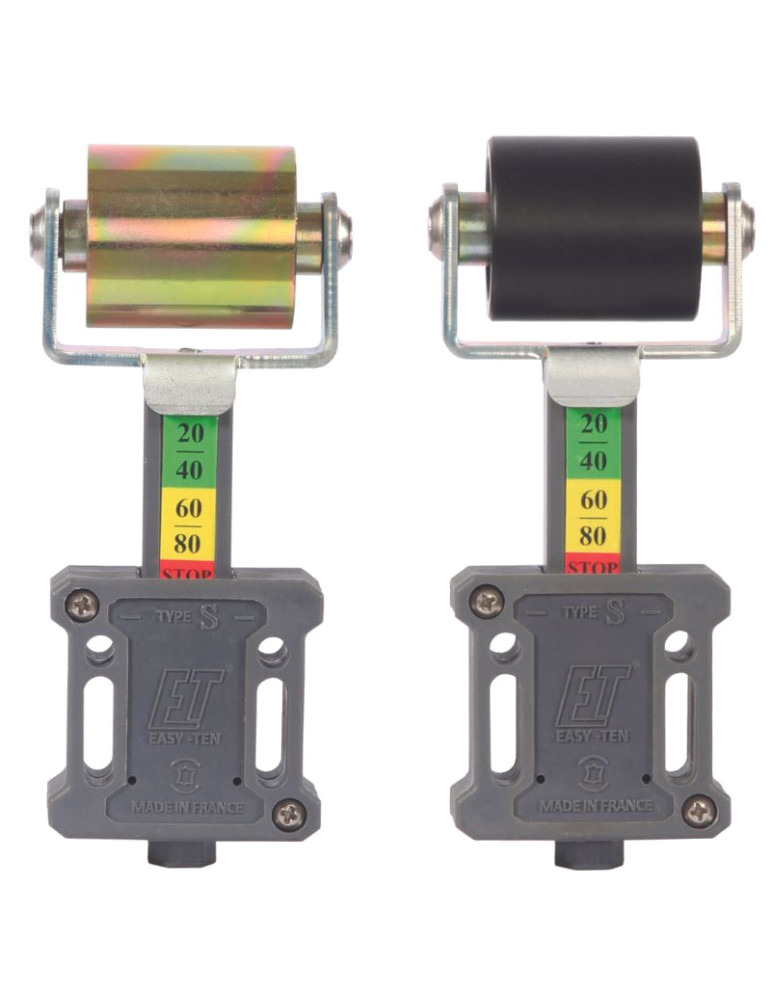

Easy Ten Type S with Roller
Polyamide

galvanized Steel + Polyamide Roller
Steel
(Zinc Plated Steel Roller)

Galvanized Steel Yoke + Galvanized Steel Roller
Stainless Steel
(Roller & Bearing)

Stainless Steel clevis
+ Stainless Steel Roller
+ Stainless Steel Bearing
Polyamide Stainless Steel

Chape inox
+ Galet Polyamide
+Roulement inox

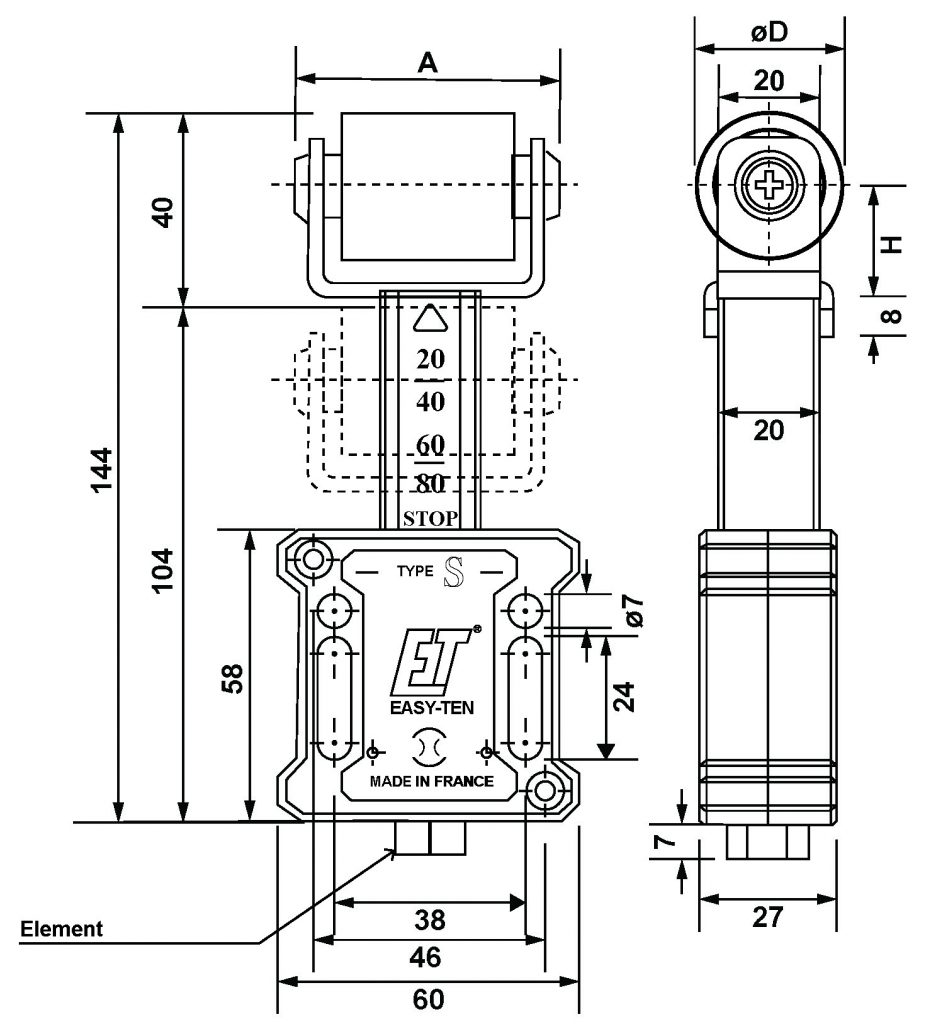

Max SPEED T/mmABCODH
ETRE-2HETRU-2HETXRU-2HETXRE-2H80005435453022.5
ETRE-3/4HETRU-3/4HETXRU-3/4HETXRE-3/4H80007045584027.5
All measurements in mm
