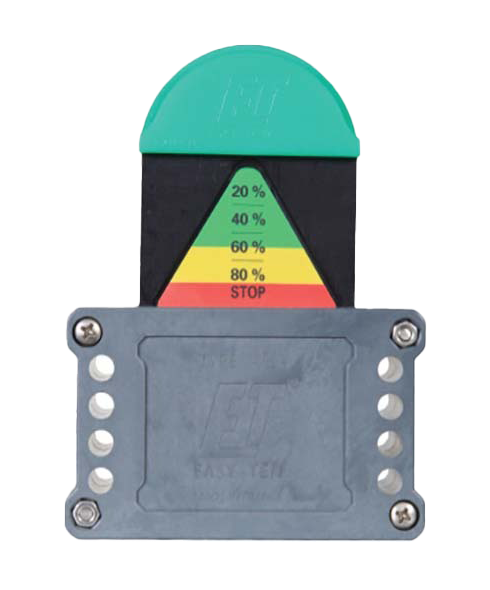

Type L with SC Sliding Block

The TransDrive Easy Ten Type L with SC (Semi-Circular) Sliding Block is a rugged, high-performance chain tensioner purpose-built for demanding industrial chain drive systems. This model features a precisely machined semi-circular sliding block made from green HD 1000 high-density polyethylene, known for its exceptional wear resistance, low friction properties, and long service life.

The SC profile ensures smooth chain engagement, reducing vibration and wear while maintaining optimal tension over prolonged operation. Designed for heavy-duty environments, it excels in applications such as conveyor systems and power transmission setups where reliability, durability, and minimal maintenance are essential.

The Easy Ten Type L with SC block is also fully interchangeable with most industry-standard tensioners and accommodates a wide range of chain sizes and configurations, making it a versatile solution for engineers and maintenance teams alike.

Features

  • Semi-circular (SC) sliding block profile, ideal for maintaining chain alignment and tension over angles up to 90°.
  • Main case constructed from PA6 polyamide reinforced with 30% glass fibre for high strength, with the column in black polyethylene HD 500.
  • Compatible with a wide range of British Standard simplex, duplex, and triplex chains.
  • Heavy tension as standard, with an optional light tension version available.
  • Provides a 40 mm tensioning stroke for reliable chain engagement.
  • Reduces vibration, minimizes chain wear, and extends the service life of both chain and sprockets.

product Specifications

Simplex Chain

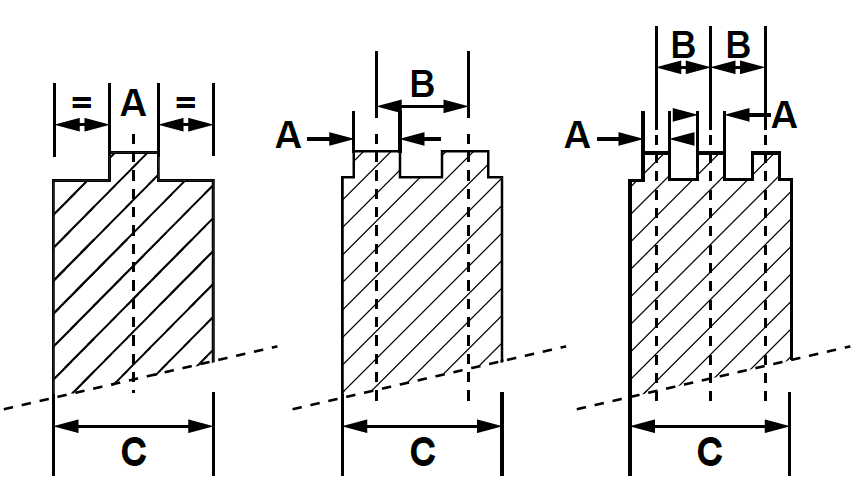

Part No.ChainABC
ETL-SC06B1H06 B1530
ETL-SC08B1H08 B1730
ETL-SC10B1H10 B1930
ETL-SC12B1H12 B11130
ETL-SC16B1H16 B11630
ETL-SC20B1H20 B11830
All measurements in mm
Duplex Chain
Part No.ChainABC
ETL-SC06B2H06 B2510.2430
ETL-SC08B2H08 B2713.9230
ETL-SC10B2H10 B2916.5930
ETL-SC12B2H12 B21119.4635
All measurements in mm
Triplex Chain
Part No.ChainABC
ETL-SC06B3H06 B3510.2430
ETL-SC08B3H06 B3713.9235
All measurements in mm

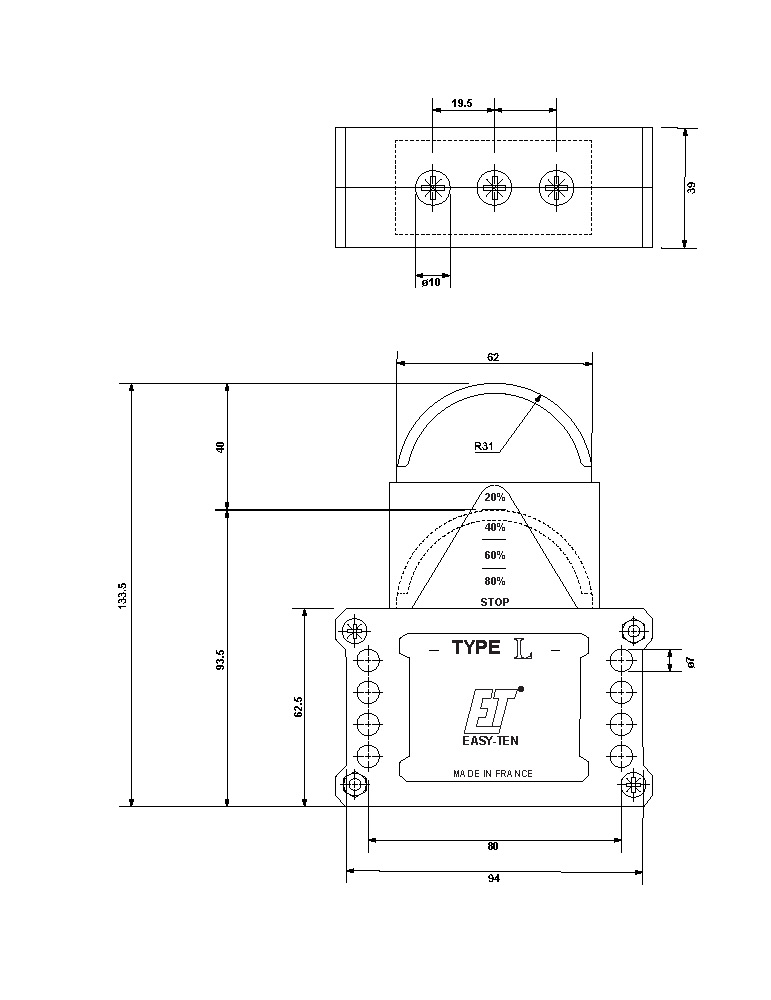

TransDrive Easy Ten Type L Tensioner with SC Sliding Block
TypeStroke (m/m)
403020100
1 Spring (L) Light Tension6080100120140
1 Spring (H) Heavy Tension100140170200240
2 Spring (L) Light Tension120160200240280
2 Spring (H) Heavy Tension200270340400480
3 Spring (L) Light Tension180240300360420
3 Spring (H) Heavy Tension300420500600720
All measurements of Force measured in Newtons
