Bolt-On Hubs
The TransDrive Taper Lock Bolt-On Hubs are engineered for seamless compatibility with Taper Lock Bushes, providing a reliable and practical solution for securing impellers, agitators, fan motors, and other components to shafts. Designed for versatility, these hubs can be mounted on either the left or right side, making them ideal for applications where welding is impractical or restricted. Available in a wide range of bore sizes from BF12 through to BF30, the TransDrive Bolt-On Hub range offers strength, flexibility, and ease of installation across diverse industrial uses.
Product Specifications

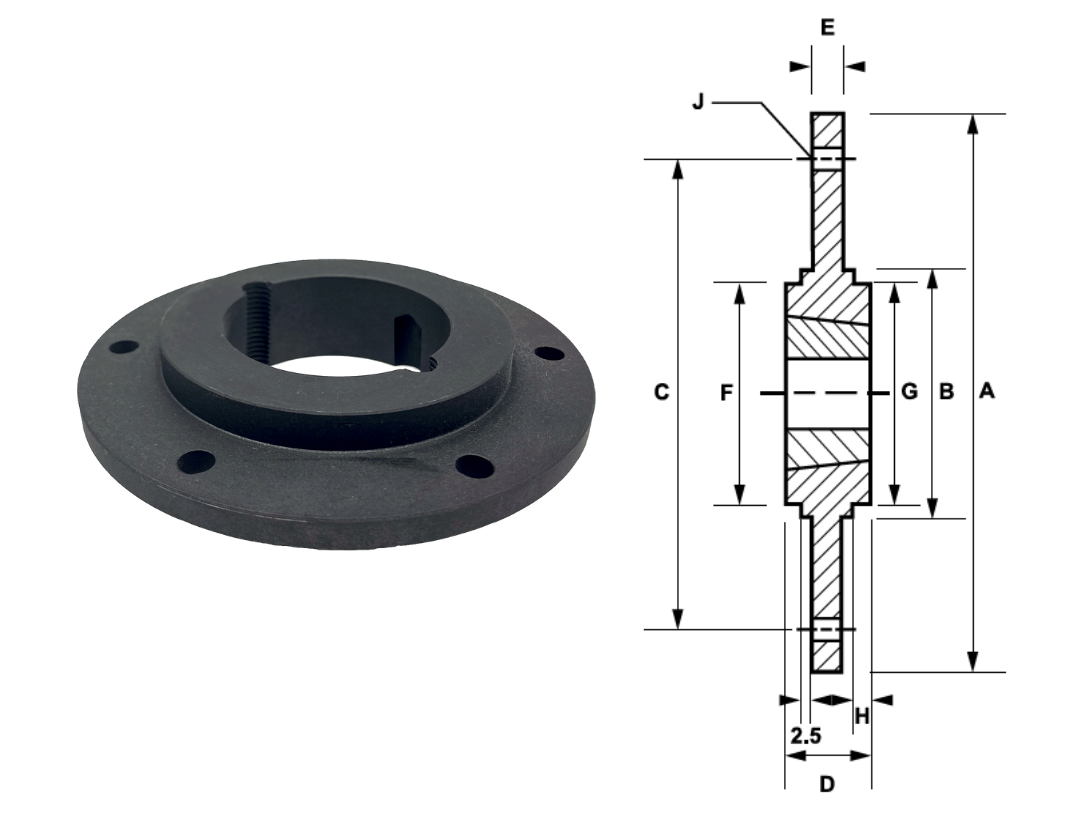

| Part No. | T/L Bush | A | B | C | D | E | R | G | H | J (No. X Diameter) |
|---|---|---|---|---|---|---|---|---|---|---|
| BF12 | 1210 | 120 | 80 | 100 | 25 | 6.5 | 74 | 80 | 10 | 6 x 6.5 |
| BF16 | 1610 | 130 | 90 | 110 | 25 | 6.5 | 84 | 90 | 10 | 6 x 6.5 |
| BF20 | 2012 | 145 | 100 | 125 | 32 | 8.5 | 99 | 100 | 13 | 6 x 8.5 |
| BF25 | 2517 | 185 | 130 | 155 | 44 | 11.5 | 120 | 119 | 20 | 6 x 10.5 |
| BF30 | 3020 | 220 | 165 | 190 | 50 | 11.5 | 146 | 147 | 20 | 6 x 13 |
