HRC Couplings

TransDrive HRC Couplings are a trusted and reliable solution for a wide variety of power transmission applications. Each coupling consists of two high-quality cast iron flanges and a rubber element that operates under compression to transmit torque smoothly while absorbing shock and vibration.

The modular design allows for quick installation and straightforward maintenance, making them ideal for reducing downtime in busy industrial environments. TransDrive HRC Couplings are available in a wide selection of configurations, including flexible elements made from Nitrile or polyurethane, and hub options in both pilot bore and taper lock designs – ensuring compatibility with a broad range of shaft sizes and machinery requirements.

Product Specifications

Size	Bush	Bore		C	D	Bored to Size				Diameter			F	G	L1	L2	L3	J
		Bore				Bore+		C	D	Diameter
		Max	Min			Max	Min	C	D	A	B	C
70	1008	25	9	19.0	23.5	32	8	21	25	69	60	31	27	18	65	66.5	68	29
90	1108	28	9	18.5	23.5	38	8	26	30	85	65	32	32.5	22.5	69.5	75	82.5	29
110	1610	42	11	18.5	26.5	55	8	37	45	112	100	45	45	29	82	100.5	119	38
130	1610	42	14	17.5	26.5	60	36	47	55	130	105	50	54	36	89	117.5	145	38
150	2012	50	14	23.0	33.5	65	40	50	60	150	115	62	61	40	107	133.5	160	42
180	2517	60	16	34.0	46.5	80	46	58	70	180	125	77	74	49	142	165.5	189	48
230	3020	75	25	39.5	52.5	100	52	77	90	225	155	99	85.5	59.4	142	202	239.5	55
280	3535	90	35	74	90.5	115	62	90	105	275	185	119	107.5	74.5	142	270	284.5	67

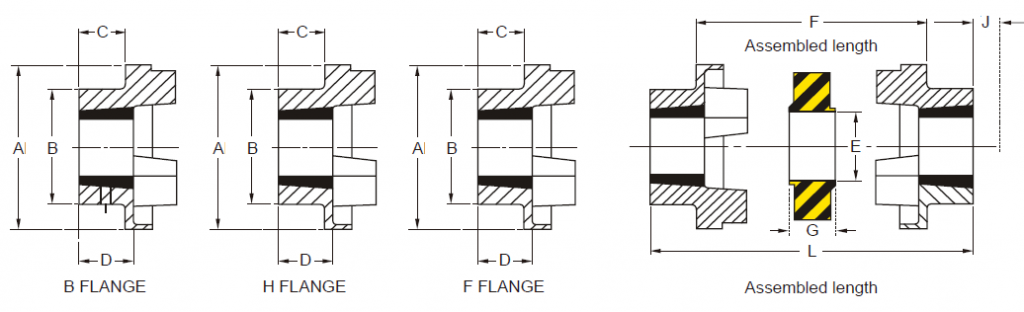

TransDrive HRC Coupling Dimensions

Physical Characteristics

Size	Power Rating Per 100 rev/min	Maximum Speed* (rev/min)	Torque Rating (Nm)		Moment of Inertia MR2 (kgm2)	Torsional Stiffness (Nm/o)	Maximum Misalignment		Mass (kg)
Size	Power Rating Per 100 rev/min	Maximum Speed* (rev/min)	Normal	Maximum	Moment of Inertia MR2 (kgm2)	Torsional Stiffness (Nm/o)	Parallel	Axial	Mass (kg)
70	0.33	9100	31.5	72	0.00085	10.2	0.3	+0.20	1.00
90	0.84	7400	80	180	0.00115	25.5	0.3	+0.49	1.17
110	1.168	5630	160	360	0.00400	48.0	0.3	+0.61	5.00
130	3.30	4850	315	720	0.00780	84.0	0.4	+0.79	5.46
150	6.28	4200	600	1500	0.01810	176	0.4	+0.92	7.11
180	9.95	350	950	2350	0.04340	240	0.4	+1.09	16.60
230	20.9	2800	2000	5000	0.12068	336	0.5	+1.32	26.00
280	33.0	230	3150	7200	0.44653	960	0.5	+1.70	50.00

TransDrive HRC Coupling Physical Characteristics

Power Ratings (kW)

Speed rev/min	Coupling Size
Speed rev/min	70	90	110	130	150	180	230	280
100	0.33	0.84	1.68	3.30	6.28	9.95	20.9	33.0
200	0.66	1.68	3.35	6.6	12.6	19.9	11.9	65.0
400	1.32	3.35	6.70	13.2	25.1	39.8	83.8	132
600	1.98	5.03	10.1	19.8	37.7	59.7	126	198
720	2.37	6.03	12.1	23.8	45.2	71.6	151	238
800	2.64	6.70	13.4	26.4	50.3	79.6	168	264
960	3.17	8.04	16.1	31.7	60.3	95.5	201	317
1200	3.96	10.1	20.1	39.6	75.4	119	251	396
1440	4.75	12.1	24.1	47.5	90.5	143	302	475
1600	5.28	13.4	26.8	52.8	101	159	335	528
1800	5.94	15.1	30.2	59.4	113	179	377	594
2000	6.60	16.8	33.5	66.0	126	199	419	660
2200	7.26	18.4	36.9	72.6	138	219	461	726
2400	7.92	20.1	40.2	79.2	151	239	503	–
2600	8.58	21.8	43.6	85.8	163	259	545	–
2880	9.50	24.1	48.3	95	181	286	–	–
3000	9.90	25.1	50.3	99	188	298	–	–
3600	11.90	30.1	60.3	118	226	–	–	–

For speeds below 100 rev/min and intermediate speeds, use normal torque ratings
