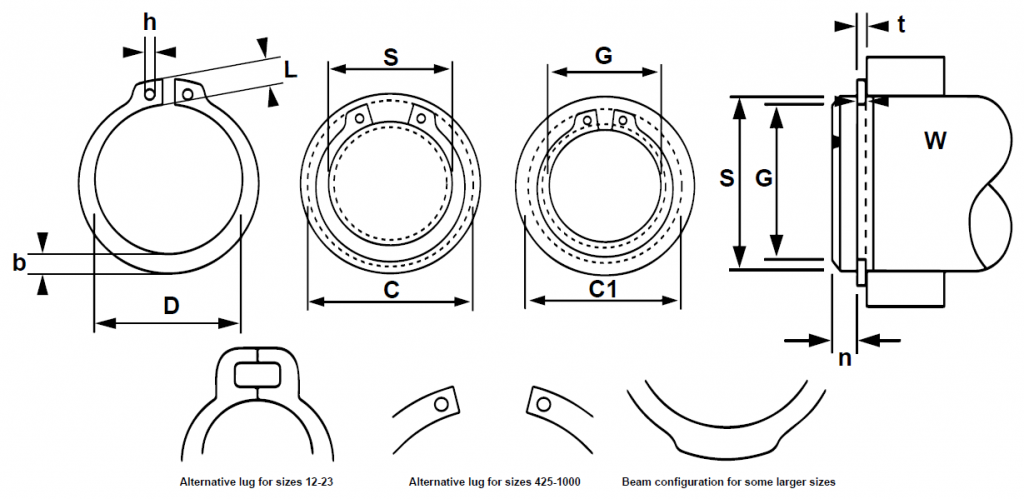

Circlips – Stainless Steel External SS1400
Product Specifications
| Size Code | Bore B | Groove (G) | Circlips (F) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G | Tol. | W | Tol. | n (min). | d~ | t | Tol. | D | Tol. | C | c1 | L(max) | b~ | h(min.) | ||
| 1400-4 | 4 | 3.8 | “(+) 0.00 (-)0.048” | 0.5 | – | 0.3 | 0.1 | 0.4 | “+)0.00 (-)0.05-“ | 3.7 | “(+)0.04 (-) 0.15″ | 8.6 | 8.2 | 2.2 | 0.9 | 1 |
| 1400-5 | 5 | 4.8 | 0.7 | 0.3 | 0.1 | 0.6 | 4.7 | 10.3 | 9.8 | 2.5 | 1.1 | 1 | ||||
| 1400-6 | 6 | 5.7 | 0.8 | 0.5 | 0.15 | 0.7 | 5.6 | 11.7 | 11.1 | 2.7 | 1.3 | 1.2 | ||||
| 1400-7 | 7 | 6.7 | “(+) 0.00 (-) 0.06″ | 0.9 | 0.5 | 0.15 | 0.8 | 6.5 | “(+)0.06 (-) 0.18″ | 13.5 | 12.9 | 3.1 | 1.4 | 1.2 | ||
| 1400-8 | 8 | 7.6 | 0.9 | 0.6 | 0.2 | 0.8 | 7.4 | 14.7 | 14 | 3.2 | 1.5 | 1.2 | ||||
| “(+)0.00 (-)0.06” | ||||||||||||||||
| 1400-9 | 9 | 8.6 | 1.1 | 0.6 | 0.2 | 1 | 8.4 | 16 | 15.2 | 3.3 | 1.7 | 1.2 | ||||
| 1400-10 | 10 | 9.6 | 1.1 | 0.6 | 0.2 | 1 | 9.3 | “(+)0.10 (-)0.36” | 17 | 16.2 | 3.3 | 1.8 | 1.5 | |||
| 1400-11 | 11 | 10.5 | “(+)0.00 (-)0.11” | 1.1 | 0.8 | 0.25 | 1 | 10.2 | 18 | 17.1 | 3.3 | 1.8 | 1.5 | |||
| 1400-12 | 12 | 11.5 | 1.1 | 0.8 | 0.25 | 1 | 11 | 19 | 18.1 | 3.3 | 1.8 | 1.7 | ||||
| 1400-13 | 13 | 12.4 | 1.1 | 0.9 | 0.3 | 1 | 11.9 | 20.2 | 19.2 | 3.4 | 2 | 1.7 | ||||
| 1400-14 | 14 | 13.4 | 1.1 | 0.9 | 0.3 | 1 | 12.9 | 21.4 | 20.4 | 3.5 | 2.1 | 1.7 | ||||
| 1400-15 | 15 | 14.3 | 1.1 | 1.1 | 0.35 | 1 | 13.8 | 22.5 | 21.5 | 3.6 | 2.2 | 1.7 | ||||
| 1400-16 | 16 | 15.2 | 1.1 | 1.2 | 0.4 | 1 | 14.7 | 23.8 | 22.6 | 3.7 | 2.2 | 1.7 | ||||
| 1400-17 | 17 | 16.2 | 1.1 | 1.2 | 0.4 | 1 | 15.7 | 25 | 23.8 | 3.8 | 2.3 | 1.7 | ||||
| 1400-18 | 18 | 17 | 1.3 | 1.5 | 0.5 | 1.2 | 16.5 | 26.2 | 24.8 | 3.9 | 2.4 | 2 | ||||
| 1400-19 | 19 | 18 | 1.3 | 1.5 | 0.5 | 1.2 | 17.5 | 27.2 | 25.8 | 3.9 | 2.5 | 2 | ||||
| 1400-20 | 20 | 19 | “(+)0.00 (-)0.13” | 1.3 | 1.5 | 0.5 | 1.2 | 18.5 | “(+)0.13 (-)0.42” | 28.4 | 27 | 4 | 2.6 | 2 | ||
| 1400-21 | 21 | 20 | 1.3 | 1.5 | 0.5 | 1.2 | 19.5 | 29.6 | 28.2 | 4.1 | 2.7 | 2 | ||||
| 1400-22 | 22 | 21 | 1.3 | 1.5 | 0.5 | 1.2 | 20.5 | 30.8 | 29.4 | 4.2 | 2.8 | 2 | ||||
| 1400-23 | 23 | 22 | 1.3 | 1.5 | 0.5 | 1.2 | 21.5 | 32 | 30.6 | 4.3 | 2.9 | 2 | ||||
| 1400-24 | 24 | 22.9 | “(+)0.00 (-)0.21” | 1.3 | 1.7 | 0.55 | 1.2 | 22.2 | “(+)0.21 (-)0.42” | 33.2 | 31.7 | 4.4 | 3 | 2 | ||
| 1400-25 | 25 | 23.9 | 1.3 | 1.7 | 0.55 | 1.2 | 23.2 | 34.2 | 32.7 | 4.4 | 3 | 2 | ||||
| 1400-26 | 26 | 24.9 | 1.3 | 1.7 | 0.55 | 1.2 | 24.2 | 35.5 | 33.9 | 4.5 | 3.1 | 2 | ||||
| 1400-27 | 27 | 25.6 | 1.3 | 2.1 | 0.7 | 1.2 | 24.9 | 36.7 | 34.8 | 4.6 | 3.1 | 2 | ||||
| 1400-28 | 28 | 26.6 | 1.6 | 2.1 | 0.7 | 1.5 | 25.9 | 37.9 | 36 | 4.7 | 3.2 | 2 | ||||
| 1400-29 | 29 | 27.6 | “(+)0.00 (-)0.21” | 1.6 | “(+)0.14 (-)0.00” | 2.1 | 0.7 | 1.5 | “(+)0.00 (-)0.06” | 26.9 | “(+)0.21 (-)0.42” | 39.1 | 37.2 | 4.8 | 3.4 | 2 |
| 1400-30 | 30 | 28.6 | 1.6 | 2.1 | 0.7 | 1.5 | 27.9 | 40.5 | 38.6 | 5 | 3.5 | 2 | ||||
| 1400-32 | 32 | 30.3 | “(+)0.00 (-)0.25″ | 1.6 | 2.6 | 0.85 | 1.5 | 29.6 | 43 | 40.7 | 5.2 | 3.6 | 2.5 | |||
| 1400-33 | 33 | 31.3 | 1.6 | 2.6 | 0.85 | 1.5 | 30.5 | “(+)0.25 (-)0.5″ | 44 | 41.7 | 5.2 | 3.7 | 2.5 | |||
| 1400-35 | 35 | 33 | 1.6 | 3 | 1 | 1.5 | 32.2 | 46.8 | 44.2 | 5.6 | 3.9 | 2.5 | ||||
| 1400-36 | 36 | 34 | 1.85 | 3 | 1 | 1.75 | 33.2 | 47.8 | 45.2 | 5.6 | 4 | 2.5 | ||||
| 1400-37 | 37 | 35 | 1.85 | 3 | 1 | 1.75 | 34.2 | 49 | 47 | 5.7 | 4.1 | 2.5 | ||||
| 1400-38 | 38 | 36 | 1.85 | 3 | 1 | 1.75 | 35.2 | 50.2 | 47.6 | 5.8 | 4.2 | 2.5 | ||||
| 1400-40 | 40 | 37.5 | 1.85 | 3.8 | 1.25 | 1.75 | 36.5 | “(+)0.39 (-)0.90” | 52.6 | 49.5 | 6 | 4.4 | 2.5 | |||
| 1400-41 | 41 | 38.5 | 1.85 | 3.8 | 1.25 | 1.75 | 37.5 | 54 | 51.5 | 6.2 | 4.5 | 2.5 | ||||
| 1400-42 | 42 | 39.5 | 1.85 | 3.8 | 1.25 | 1.75 | 38.5 | 55.7 | 52.5 | 6.5 | 4.5 | 2.5 | ||||
| 1400-45 | 45 | 42.5 | 1.85 | 3.8 | 1.25 | 1.75 | 41.5 | 59.1 | 55.9 | 6.7 | 4.7 | 2.5 | ||||
| 1400-47 | 47 | 44.5 | 1.85 | 3.8 | 1.25 | 1.75 | 43.5 | 61.3 | 58.1 | 6.8 | 4.9 | 2.5 | ||||
| 1400-48 | 48 | 45.5 | 1.85 | 3.8 | 1.25 | 1.75 | 44.5 | 62.5 | 59.3 | 6.9 | 5 | 2.5 | ||||
| 1400-50 | 50 | 47 | 2.15 | 4.5 | 1.5 | 2 | “(+)0.00 (-)0.07” | 45.8 | 64.5 | 60.8 | 6.9 | 5.1 | 2.5 | |||
| 1400-52 | 52 | 49 | 2.15 | 4.5 | 1.5 | 2 | 47.8 | 66.7 | 63 | 7 | 5.2 | 2.5 | ||||
| 1400-55 | 55 | 52 | “(+)0.00 (-)0.30” | 2.15 | 4.5 | 1.5 | 2 | 50.8 | “(+)0.46 (-)1.10” | 70.2 | 66.4 | 7.2 | 5.4 | 2.5 | ||
| 1400-56 | 56 | 53 | 2.15 | 4.5 | 1.5 | 2 | 51.8 | 71.6 | 67.6 | 7.3 | 5.5 | 2.5 | ||||
| 1400-57 | 57 | – | – | – | – | – | – | – | – | – | – | – | ||||
| 1400-58 | 58 | 55 | 2.15 | 4.5 | 1.5 | 2 | 53.8 | 73.6 | 68.6 | 7.3 | 5.5 | 2.5 | ||||
| 1400-60 | 60 | 75 | 2.15 | 4.5 | 1.5 | 2 | 55.8 | 75.6 | 71.8 | 7.4 | 5.8 | 2.5 | ||||
| 1400-61 | 61 | – | 2.15 | – | – | – | – | – | – | – | – | – | ||||
| 1400-62 | 62 | 59 | 2.15 | 4.5 | 1.5 | 2 | 57.8 | 77.8 | 74 | 7.5 | 6.0 | 2.5 | ||||
| 1400-63 | 63 | 60 | 2.15 | 4.5 | 1.5 | 2 | 58.8 | 79.0 | 75.2 | 7.6 | 6.2 | 2.5 | ||||
| 1400-64 | 64 | – | – | – | – | – | – | – | – | – | – | – | ||||
| 1400-65 | 65 | 62 | 2.65 | 4.5 | 1.5 | 2.5 | 60.8 | 81.4 | 77.6 | 7.8 | 6.3 | 3.0 | ||||
| 1400-67 | 67 | 64 | 2.65 | 4.5 | 1.5 | 2.5 | 62.5 | 83.6 | 79.8 | 7.9 | 6.4 | 3.0 | ||||
| 1400-68 | 68 | 65 | 2.65 | 4.5 | 1.5 | 2.5 | 63.5 | 84.4 | 81.0 | 8.0 | 6.5 | 3.0 | ||||
| 1400-70 | 70 | 67 | 2.65 | 4.5 | 1.5 | 2.5 | 65.5 | 87.0 | 83.2 | 8.1 | 6.6 | 3.0 | ||||
| 1400-72 | 72 | 69 | 2.65 | 4.5 | 1.5 | 2.5 | 67.5 | 89.2 | 85.4 | 82.0 | 6.8 | 3.0 | ||||
| 1400-75 | 75 | 72 | 2.65 | 4.5 | 1.5 | 2.5 | 70.5 | 92.7 | 88.8 | 8.4 | 7.0 | 3.0 | ||||
| 1400-80 | 80 | 76 | 2.65 | 5.3 | 1.75 | 2.5 | 74.5 | 98.1 | 93.7 | 8.6 | 7.4 | 3.0 | ||||
| 1400-85 | 85 | 81.5 | “(+)0.00 (-)0.35” | 3.15 | “(+)0.18 (-)0.00” | 5.3 | 1.75 | 3 | “(+)0.00 (-)0.08” | 79.5 | 103.3 | 98.9 | 8.7 | 7.8 | 3.5 | |
| 1400-90 | 90 | 86.5 | 3.15 | 5.3 | 1.75 | 3 | 84.5 | “(+)0.54 (-)1.13” | 108.5 | 104.0 | 8.8 | 8.2 | 3.5 | |||
| 1400-95 | 95 | 91.5 | 3.15 | 5.3 | 1.75 | 3 | 89.5 | 114.8 | 111.0 | 9.4 | 8.6 | 3.5 | ||||
| 1400-100 | 100 | 96.5 | 3.15 | 5.3 | 1.75 | 3 | 94.5 | 120.2 | 116.0 | 9.6 | 9.0 | 3.5 | ||||
