Weld-on Hubs
The TransDrive Taper Bore Weld-On Hubs are precision-engineered components designed to provide a strong, secure, and reliable connection between rotating equipment and drive shafts. These hubs are pre-drilled, tapered, and bored to accommodate standard taper bushings, allowing for quick and easy installation while ensuring a firm grip on the shaft. The extended flange serves as a convenient and robust welding surface, enabling seamless attachment of pulleys, sprockets, fan rotors, and other driven components that require a permanent and high-strength connection.
Manufactured from durable materials to withstand demanding industrial conditions, TransDrive Weld-On Hubs offer superior torque transmission, reducing slippage and ensuring long-lasting performance. Whether used in power transmission systems, conveyor drives, or heavy-duty machinery, these hubs provide a cost-effective and efficient solution for applications that require precise alignment and enhanced mechanical strength. With TransDrive’s commitment to quality and reliability, our Weld-On Hubs help keep your equipment running smoothly and efficiently.
Our Range
- Taper Bored
- Taper Half-Bored

Product Specifications
Taper Bored

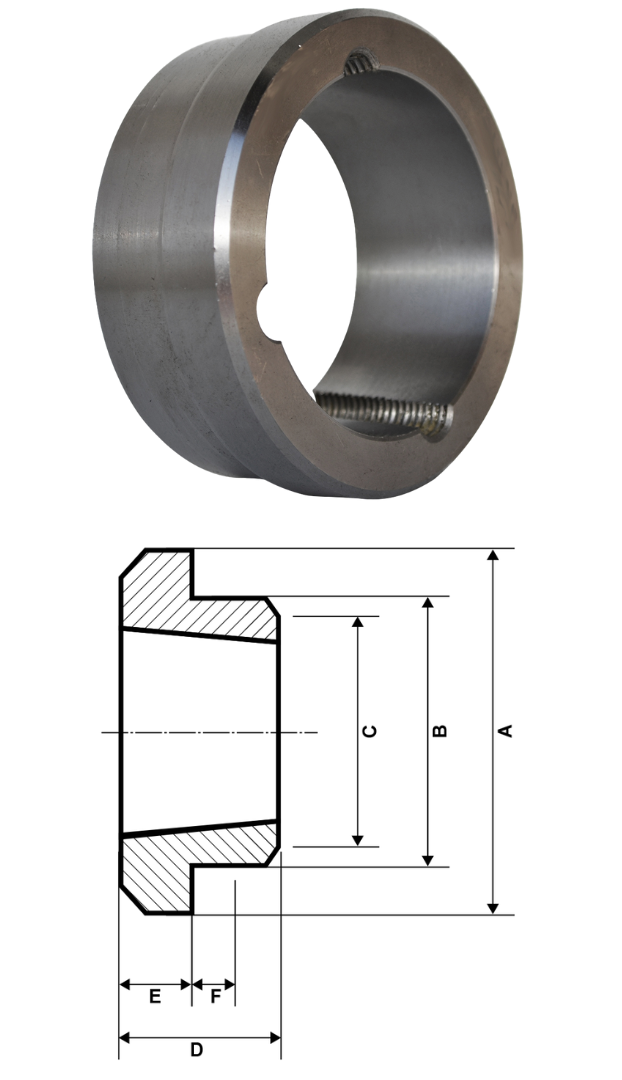

Part No. | Bush No. | A | B | C | D | E | F |
---|---|---|---|---|---|---|---|
W12 | 1215 | 73.03 | 63.5 | 62.71 | 38.1 | 15.88 | 9.53 |
W16 | 1615 | 82.55 | 73.03 | 72.24 | 38.1 | 15.88 | 9.53 |
W20 | 2017 | 101.6 | 88.9 | 88.11 | 44.45 | 19.05 | 14.45 |
W25 | 2517 | 127 | 111.13 | 110.34 | 44.45 | 19.05 | 14.45 |
W30 | 3030 | 149.86 | 133.35 | 132.56 | 76.2 | 25.4 | 19.05 |
W35 | 3535 | 184 | 159 | 158 | 89 | 32 | 25 |
W40 | 4040 | 225 | 197 | 196 | 102 | 32 | 32 |
W45 | 4545 | 254 | 222 | 221 | 114 | 38 | 38 |
W50 | 5050 | 276 | 240 | 240 | 127 | 38 | 38 |
WH12 | 1210 | 70 | 65 | 64.5 | 25 | 9 | 10 |
WH16 | 1610 | 80 | 75 | 74.5 | 25 | 9 | 10 |
WH20 | 2012 | 95 | 90 | 89.5 | 32 | 12 | 12 |
WH25 | 2517 | 115 | 110 | 109.5 | 44 | 19 | 15 |
WH30 | 3020 | 145 | 140 | 139.5 | 50 | 20 | 15 |
WH35 | 3525 | 190 | 180 | 179 | 65 | 25 | 25 |
taper Half-Bored
Part No. | Bush No. | A | B | C | D | E | F |
---|---|---|---|---|---|---|---|
WH12 | 1210 | 70 | 65 | 64.5 | 25 | 9 | 10 |
WH16 | 1610 | 80 | 75 | 74.5 | 25 | 9 | 10 |
WH20 | 2012 | 95 | 90 | 89.5 | 32 | 12 | 12 |
WH25 | 2517 | 115 | 110 | 109.5 | 44 | 19 | 15 |
WH30 | 3020 | 145 | 140 | 139.5 | 50 | 20 | 15 |
WH35 | 3525 | 190 | 180 | 179 | 65 | 25 | 25 |
