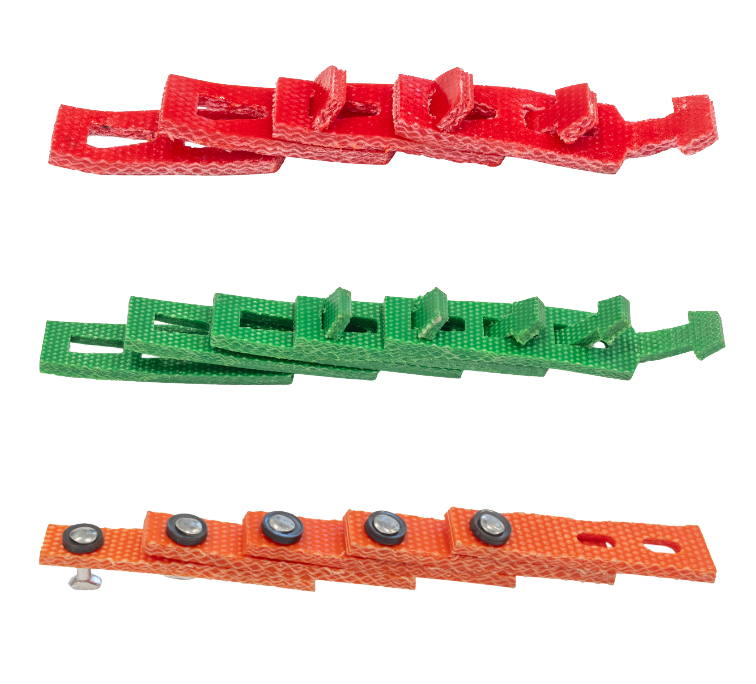

Link Belts
Link Belts deliver a highly flexible and practical solution for industrial power transmission. Their modular, easily adjustable design enables fast, tool-free installation and simple length adjustments without the need to dismantle machinery.
Manufactured from tough, engineered composite materials, these belts offer excellent resistance to oil, heat, abrasion, and vibration. The result is smooth, quiet, and reliable operation in demanding environments. Ideal for applications with restricted access or frequent maintenance requirements, Link Belts help minimise downtime, while extending the life of both the belt and the drive system.
Products

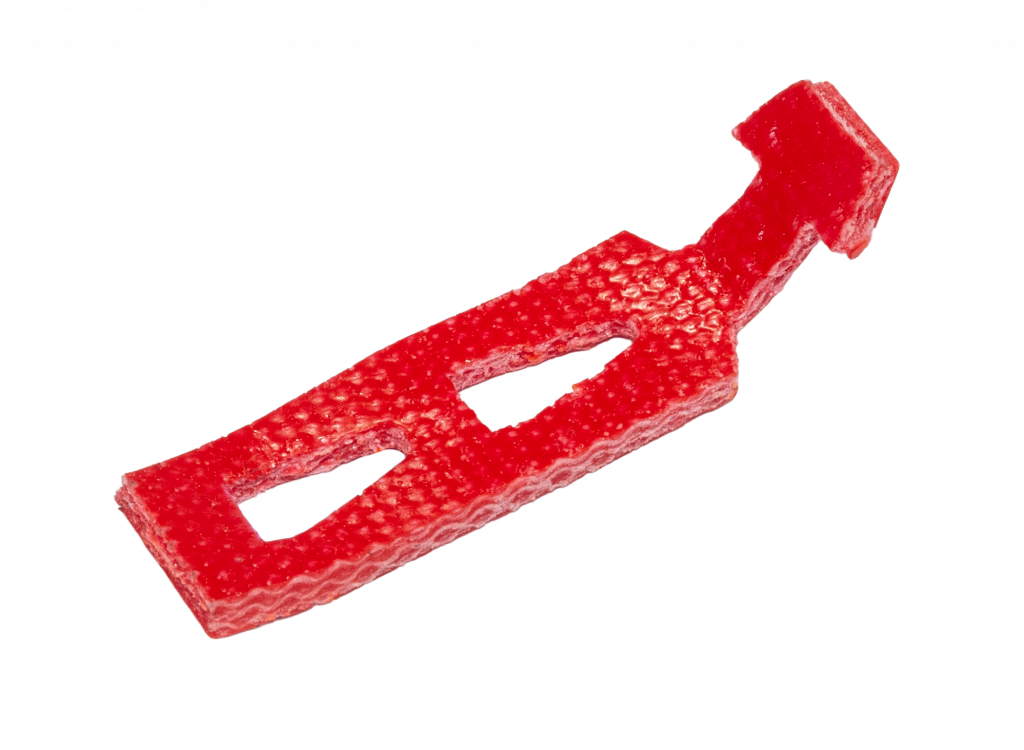

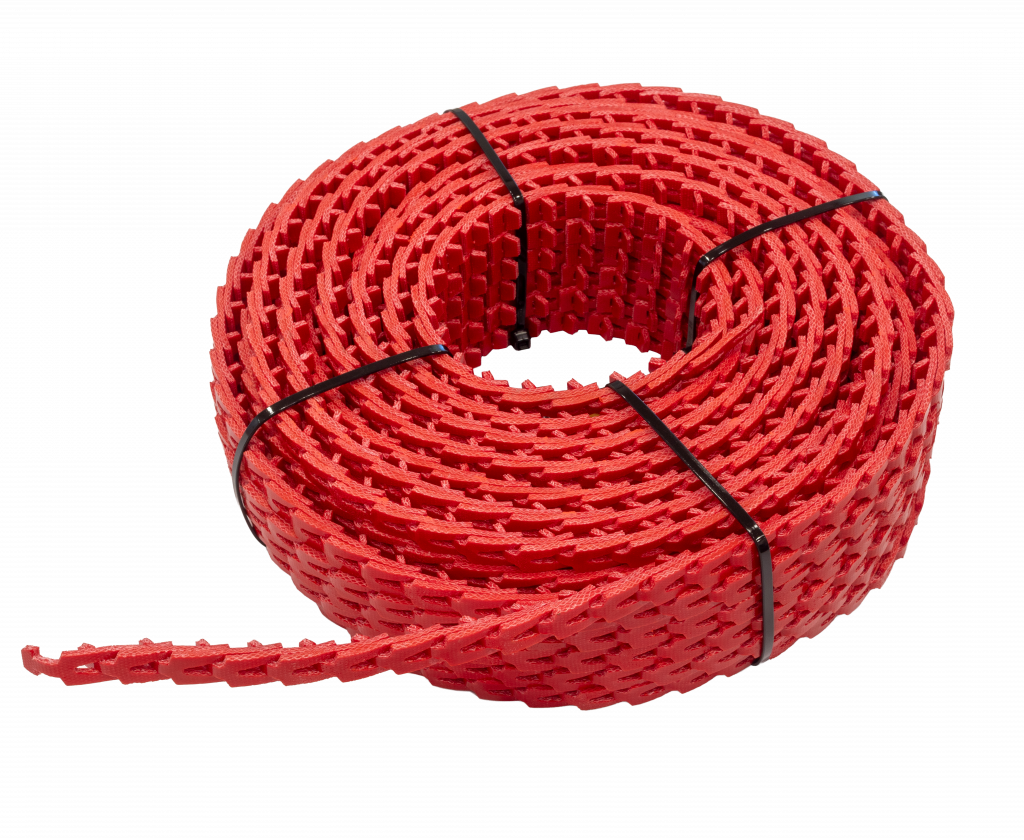

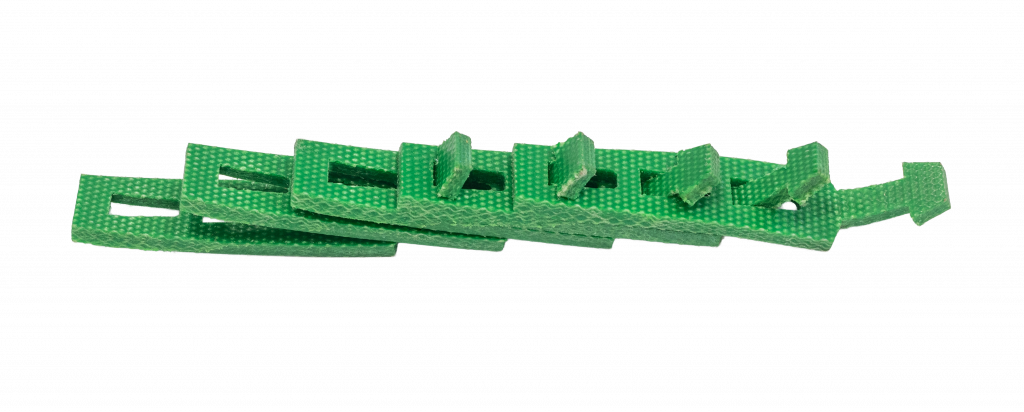

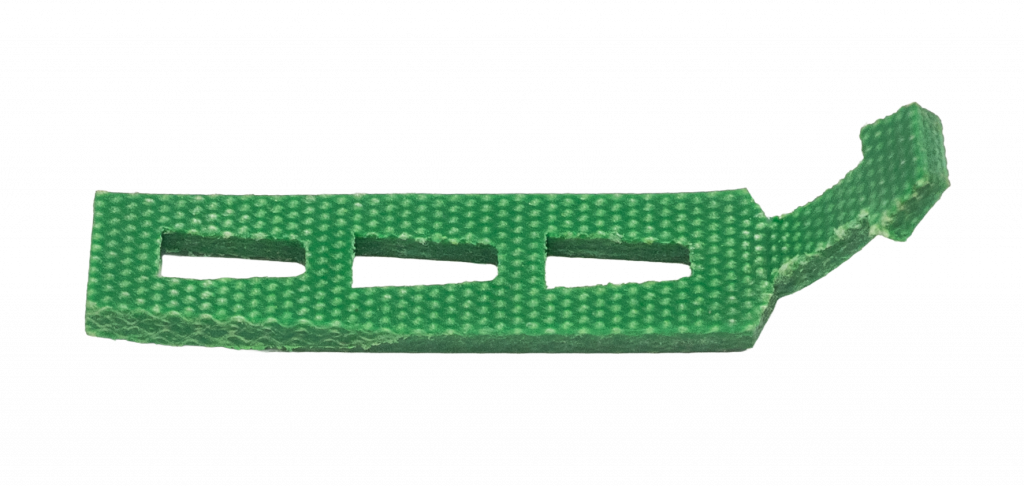

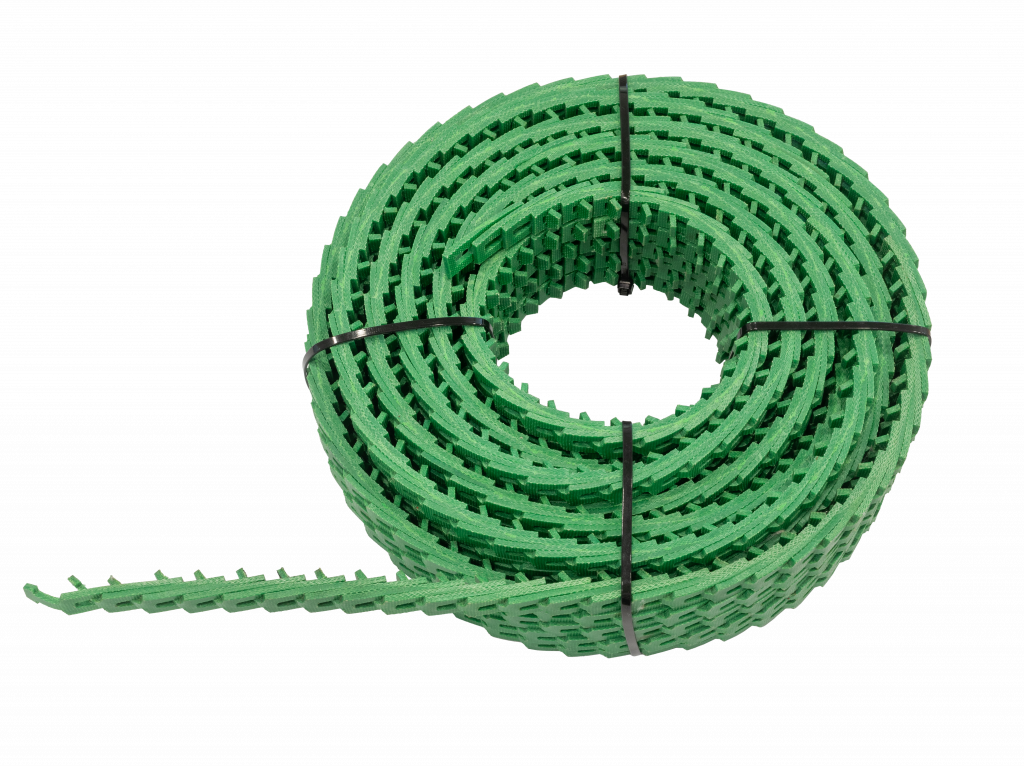

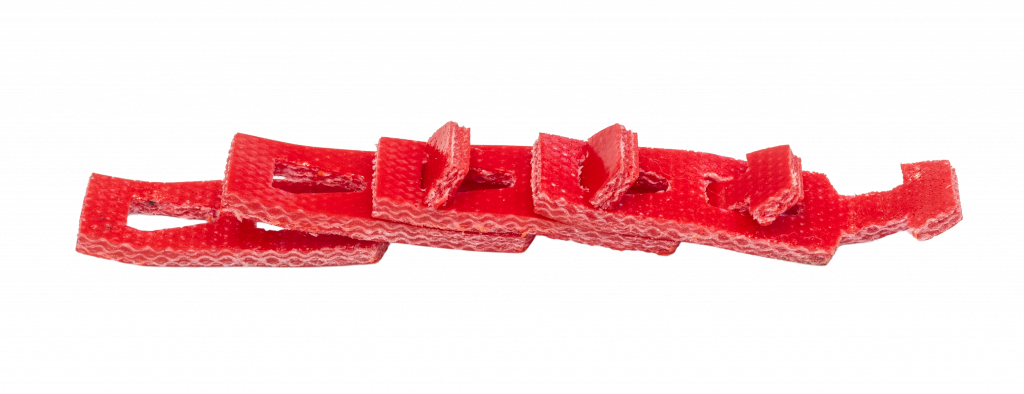

Twist Link Belt
Twist Link belts are precision-engineered polyurethane and polyester composite belts designed to replace conventional V-belts quickly and easily.
The link construction eliminates the need for matched sets and allows custom lengths to be built on-site. The high-tensile design minimises stretch and ensures consistent power transmission across a wide temperature.
Product Specifications
| Product Code | Belt Profile | Nominal Width | Minimal Pulley Ø | Ride Height Above Rim | |||||
|---|---|---|---|---|---|---|---|---|---|
| inches | mm | ||||||||
| inches | mm | inches | mm | Min. | Max. | min. | max. | ||
| TD-LB-Z | Z | 3/8 | 10 | 1.78 | 45 | 0.14 | 0.20 | 3.6 | 5.2 |
| TD-LB-A | A | 1/2 | 13 | 3.00 | 80 | 0.08 | 0.16 | 2.1 | 4.0 |
| TD-LB-B | B | 5/8 | 17 | 5.00 | 125 | 0.14 | 0.22 | 3.4 | 5.6 |
| TD-LB-C | C | 7/8 | 22 | 9.00 | 229 | 0.07 | 0.22 | 1.8 | 5.6 |
| Product Code | Belt Profile | Nominal Width | Minimal Pulley Ø | Ride Height Above Rim | |||||
|---|---|---|---|---|---|---|---|---|---|
| inches | mm | ||||||||
| inches | mm | inches | mm | Min. | Max. | min. | max. | ||
| TD-LB-SPZ | SPZ | 3/8 | 10 | 2.65 | 67 | 0.18 | 0.30 | 4.5 | 7.5 |
| TD-LB-SPA | SPA | 1/2 | 13 | 3.55 | 90 | 0.16 | 0.41 | 4.1 | 10.3 |
| TD-LB-SPB | SPB | 5/8 | 17 | 5.50 | 140 | 0.20 | 0.44 | 5.0 | 11.0 |

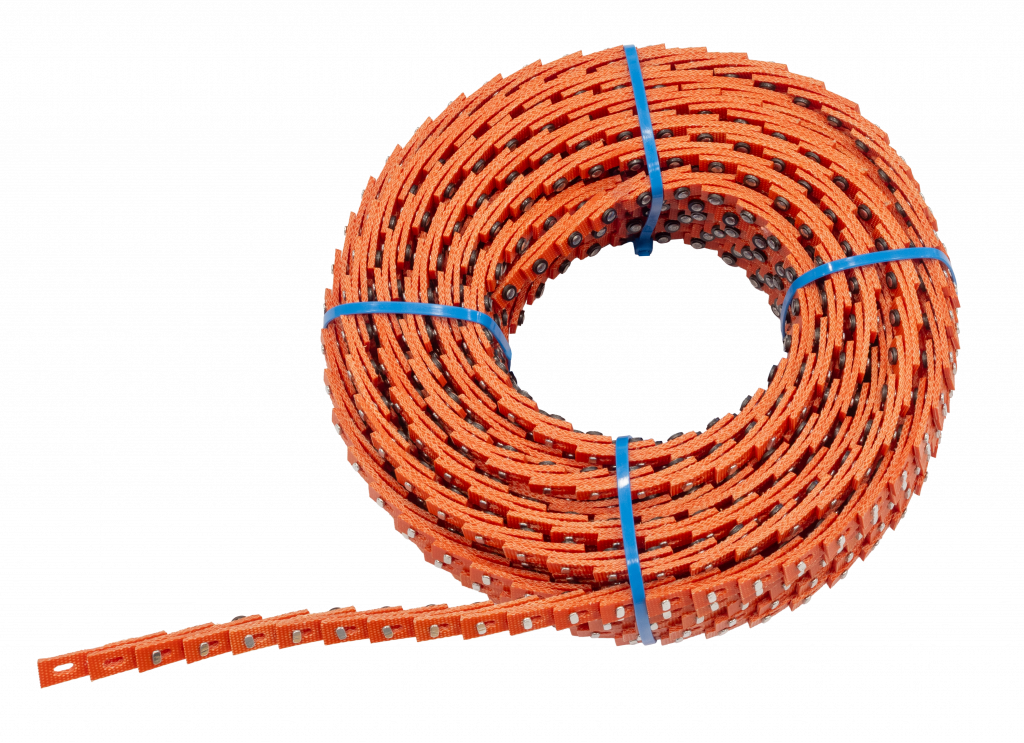

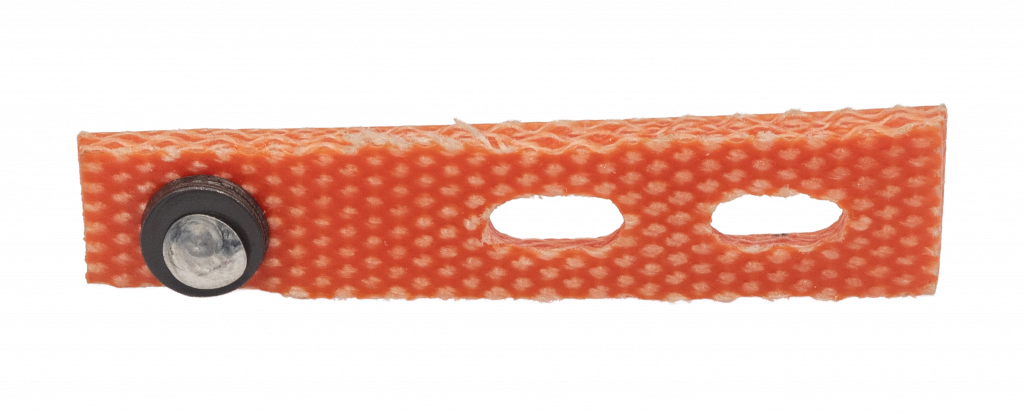

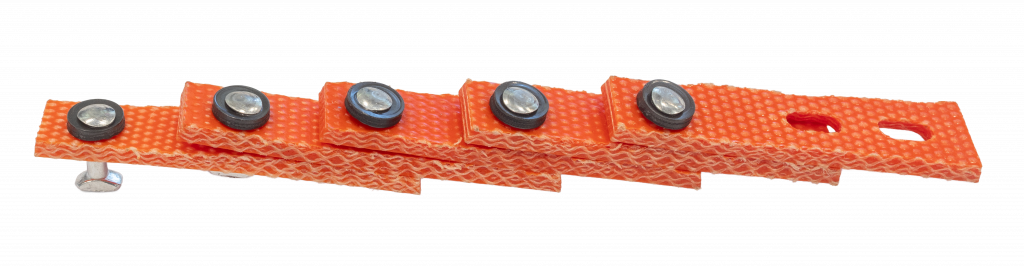

T Link Belt
T Link Belt incorporates a robust polyurethane elastomer construction with individual links joined by metal T-shaped nuts which allows superior strength and stability under high loads. This nut-fastened connection resists stretch and slip, making T Link ideal for heavy-duty or high-torque applications.
The modular design also enables quick installation, easy length adjustment and minimal downtime during maintenance.
Product Specifications
| Product Code | Belt Profile | Nominal Width | Minimal Pulley Ø | Ride Height Above Rim | |||||
|---|---|---|---|---|---|---|---|---|---|
| inches | mm | ||||||||
| inches | mm | inches | mm | Min. | Max. | min. | max. | ||
| TD-TLB-Z | Z | 3/8 | 10 | 1.78 | 45 | 0.06 | 0.18 | 1.6 | 4.6 |
| TD-TLB-A | A | 1/2 | 13 | 3.00 | 80 | 0.08 | 0.31 | 2.0 | 7.8 |
| TD-TLB-B | B | 5/8 | 17 | 5.00 | 125 | 0.09 | 0.37 | 2.2 | 9.3 |
| TD-TLB-C | C | 7/8 | 22 | 9.00 | 229 | 0.00 | 0.23 | 0.1 | 5.8 |
