Product Specifications

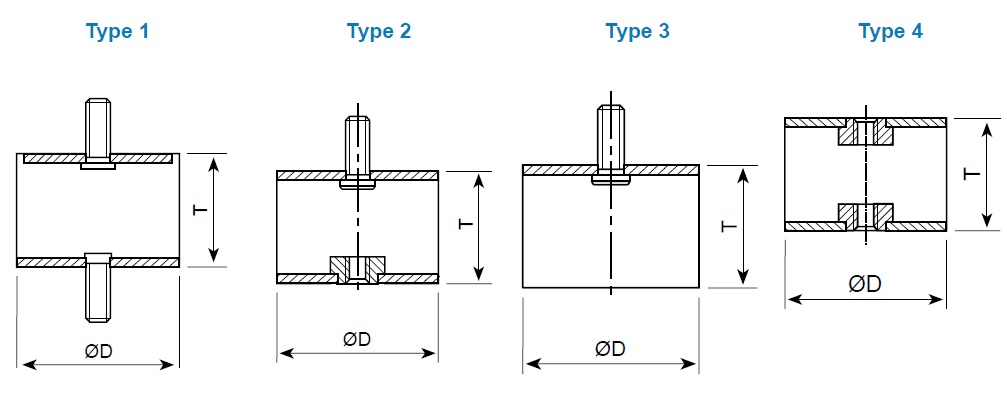

Size / Part No.	Shore Hardness	Type	Max Compressive Load(kg)	STATIC DEFL(mm)	Thread Size	Bolt/Nut
F 38×38	A	1	61	6	M8x1.25Px1.8L	M8x1.25Px7 Deep
	B		78
	C		100
F 40×30	A	4	60.5	3	M8x1.25Px23L M8*	M8x1.25Px7 Deep
	B	1	108			M8x1.25Px7 Deep
		2	108
		3	108
		4	114			–
	C	4	195			–
F 40×40	A	1	65	6	M10x1.5Px38L M8	M10 x 1.5P x 10 Deep
		4	78			–
	B	2	93			M10 x 1.5P x 10 Deep
		4	148			–
	C	3	132			M10 x 1.5P x 10 Deep
		4	233			–
F 50×35	A	4	139.5	6	M10	–
	B		264
	C		363
F 50×40	A	4	111.5	7	M10x1.5Px22L	–
	B	1	151			M10x1.5Px12 Deep
		4	195			–
	C	4	244			–
F 50×45	A	4	49.5	8	M8*	–
	B
F 50×50	A	1	71.5	7	M10x1.5Px22L	M10x1.5Px12 Deep
	B	2	132
	C	3	202
F 55×38	A	1	65	4	M8x1.25Px18L	M8x1.25Px7 Deep
