Product Specifications

Type D 12 – 25

Type D 12 – 25

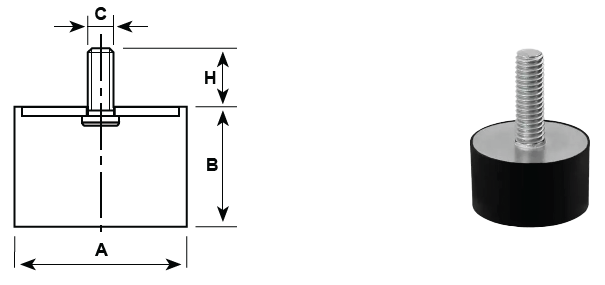

Code	A	B	C	H	Compression LOAD Max daN	Compression DEFLECT
110001	12.5	10	M5	10	12	2
110002	12.5	15	M5	10	10	3
110003	12.5	20	M5	10	8	3.5
110004	16	10	M5	12	20	1.5
110005	16	15	M5	12	20	3
110006	16	20	M5	12	15	4
110007	16	25	M5	12	15	5
110008	20	8.5	M6	16.5	40	1.5
110009	20	15	M6	16.5	35	4
110010	20	20	M6	16.5	30	5
110011	20	25	M6	16.5	30	5.5
110012	20	30	M6	16.5	25	7
110091	25.5	10	M6	18	80	2
110092	25.5	15	M6	18	60	3.5
110093	25.5	20	M6	18	55	4.5
110094	25.5	25	M6	18	50	6
110095	25.5	30	M6	18	50	8
110013	25.5	10	M8	20	80	2
110014	25.5	15	M8	20	60	3.5
110015	25.5	19	M8	20	55	4.5
110016	25.5	22	M8	20	50	5.5
110017	25.5	25	M8	20	50	6
110018	25.5	30	M8	20	50	8
110019	25.5	40	M8	20	50	10

Type D 30 – 50

Type D 30 – 50
Code	A	B	C	H	Compression LOAD Max daN	Compression DEFLECT
110020	30	15	M8	20	90	3
110021	30	22	M8	20	80	5
110101	30	25	M8	20	75	6.5
110022	30	30	M8	20	70	8
110023	30	40	M8	20	60	9
110112	40	20	M8	20	160	5
110113	40	25	M8	20	150	6
110114	40	28	M8	20	150	6
110115	40	30	M8	20	150	6
110116	40	35	M8	20	120	8
110117	40	40	M8	20	120	10
110118	40	45	M8	25	120	11
110024	40	40	M10	25	160	5
110110	40	45	M10	25	150	6
110025	40	28	M10	25	150	6
110111	40	30	M10	25	150	6
110026	40	35	M10	25	120	8
110027	40	40	M10	25	120	10
110028	40	45	M10	25	120	11
110121	50	20	M10	25	300	5
110029	50	25	M10	25	300	6
110122	50	30	M10	25	275	7
110030	50	35	M10	25	250	8
110123	50	40	M10	25	210	10
110031	50	45	M10	25	190	11
110124	50	50	M10	25	170	11
110032	50	60	M10	25	150	11

Type D 60 – 95

Type D 60 – 95
Code	A	B	C	H	Compression LOAD Max daN	Compression DEFLECT
110033	60	25	M10	25	400	6
110034	60	36	M10	25	300	9
110035	60	45	M10	25	250	11
110036	60	60	M10	25	200	12
110037	70	35	M10	25	450	8
110038	70	50	M10	25	350	11
110039	70	60	M10	25	300	12
110040	70	70	M10	25	300	14
110041	75	25	M12	30	650	7
110042	75	40	M12	30	500	9
110043	75	45	M12	30	500	10
110044	75	55	M12	30	450	11
110045	80	30	M14	35	950	7
110046	80	40	M14	35	600	9
110047	80	50	M14	35	55	10
110048	80	55	M14	35	550	11
110049	80	70	M14	35	500	13
110050	80	75	M14	35	450	14
110051	95	40	M16	45	1200	8
110052	95	55	M16	45	1000	11
110053	95	60	M16	45	800	12
110054	95	75	M16	45	700	13

Type D 105 – 150

Type D 105 – 150
Code	A	B	C	H	Compression LOAD Max daN	Compression DEFLECT
110055	105	50	M16	45	1200	9
110056	105	75	M16	45	1000	13
110057	105	700	M16	45	800	16
110058	120	50	M16	45	1500	9
110059	120	75	M16	45	1200	13
110060	120	100	M16	45	1000	16
110062	130	50	M16	45	1600	9
110063	130	75	M16	45	1450	13
110064	130	700	M16	45	1200	16
110065	150	50	M20	50	1800	9
110066	150	75	M20	50	1650	13
110067	150	100	M20	50	1400	16
