Dynamic® Couplings with Taper-Lock Hubs
The TransDrive Dynaminc® Couplings with Taper-Lock Hubs provide a secure and efficient method of shaft attachment using a precision-engineered taper-lock design. This allows for quick installation easy removal without the need for extensive machining or modifications.
Crafted from high-strength materials, these hubs deliver dependable performance and long-term durability, even in demanding industrial environments. The self-centering taper ensures a tight, vibration-resistant fit, making TransDrive Dynamic Couplings with Taper-Lock Hubs a reliable choice for accurate and trouble-free power transmission.

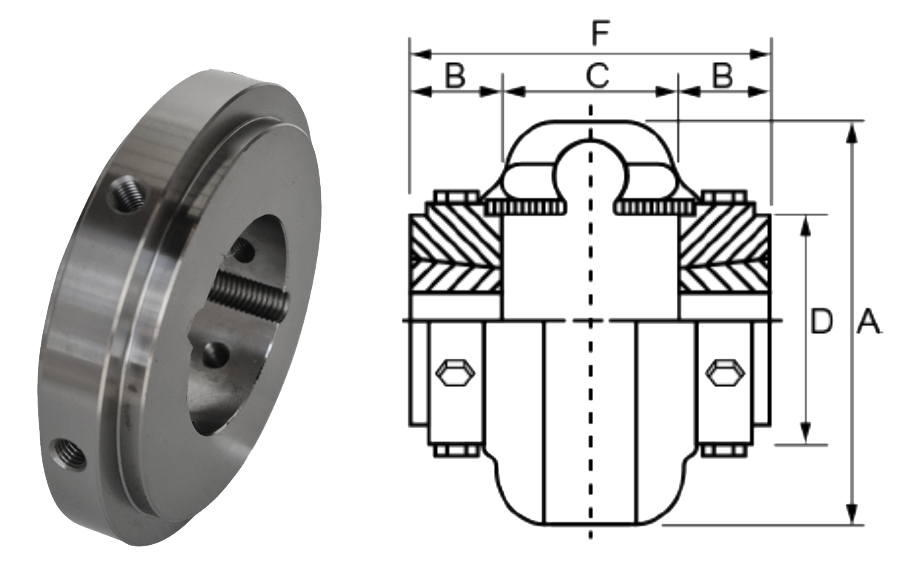

Product Specifications
| Dynamic Coupling No. | Taper Lock Bush No. | Torque (kgf.m) | max. Bore (mm) | Max. rpm | Power Rating (kW/rpm) | Dimensions | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A Outer Diameter | B Hub Length | C | D hub Diameter | Total Length | |||||||||
| in | out | E in | f out | ||||||||||
| D-3 | 1008 | 4.2 | 25 | 7500 | 0.0043 | 102 | 22 | 43.0 | – | 59 | 87 | – | 0.82 |
| D-4 | 1008 | 6.4 | 25 | 7500 | 0.0066 | 116 | 22 | 43.0 | – | 66 | 87 | – | 1.18 |
| D-5 | 1108 | 11.0 | 28 | 7500 | 0.0110 | 137 | 22 | 56.0 | – | 80 | 100 | – | 1.81 |
| D-10 | 1610 | 16.7 | 35 | 7500 | 0.0170 | 162 | 25 | 52.0 | – | 93 | 103 | – | 2.72 |
| D-20 | 1610 | 26.7 | 42 | 6600 | 0.0270 | 184 | 25 | 63.5 | – | 114 | 114 | – | 4.08 |
| D-30 | 2012 | 42.1 | 50 | 5800 | 0.0430 | 210 | 32 | 65.0 | – | 138 | 129 | – | 6.17 |
| D-40 | 2517 | 63.4 | 65 | 5000 | 0.0660 | 241 | 44 | 60.0 | – | 168 | 149 | – | 9.89 |
| D-50 | 2517 | 88.2 | 65 | 4200 | 0.0900 | 279 | 44 | 76.0 | – | 207 | 165 | – | 14.29 |
| D-60 | 3020 | 144.0 | 75 | 3800 | 0.1480 | 318 | 51 | 84.0 | – | 222 | 186 | – | 21.14 |
| D-70 | 3535 | 254.0 | 100 | 3600 | 0.2620 | 356 | 89 | 60.0 | – | 235 | 238 | – | 30.25 |
| D-80 | 4040 | 455.0 | 100 | 2000 | 0.4670 | 406 | 102 | 95.0 | – | 286 | 298 | – | 37.19 |
| D-100 | 4545 | 980.0 | 110 | 1900 | 1.0000 | 533 | 114 | 38 | 152 | 359 | 267 | 381 | 113.40 |
| D-120 | 5050 | 1961 | 125 | 1800 | 2000 | 635 | 127 | 51 | 181 | 448 | 305 | 435 | 185.07 |
