Industrial O-Ring Chain
The TransDrive Industrial O-Ring Chain has been engineered with precision and crafted with care, this specialised chain sets the standard for efficiency and durability in industrial applications.
Designed to meet the rigorous demands of modern machinery, the TransDrive O-Ring Chain ensures smooth and dependable power transfer, even in the most challenging environments. The O-ring chain includes rubber O-rings between link plates, enhancing lubrication and durability while preventing contamination, reducing maintenance, improving performance and maximising longevity.
Product Specifications
| Chain No. | Pitch P mm | Roller Diameter d1 max mm | Width Between Inner Plates b1 min mm | Pin Diameter d2 mm | Pin Length | Plate Dimensions | Ultimate Tensile Strength Q min kN | ||
|---|---|---|---|---|---|---|---|---|---|
| L mm | Lc mm | h2 mm | t/T mm | ||||||
| 40-0 | 12.7 | 7.92 | 7.85 | 3.96 | 19.55 | 20.65 | 12.0 | 1.5 | 13.8 |
| 50-0 | 15.875 | 10.16 | 9.40 | 5.08 | 23.30 | 24.5 | 15.0 | 2.03 | 21.8 |
| 60-0 | 19.05 | 11.91 | 12.57 | 5.94 | 28.65 | 30.5 | 18.0 | 2.42 | 31.1 |
| 80-0 | 25.40 | 15.88 | 15.75 | 7.92 | 35.85 | 39.0 | 24.0 | 3.25 | 55.6 |
| 100-0 | 31.75 | 19.05 | 18.95 | 9.53 | 43.2 | 47.00 | 30.00 | 4.0 | 110.20 |
| 120-0 | 38.10 | 22.23 | 25.22 | 11.11 | 54.00 | 57.5 | 35.70 | 4.80 | 158.20 |
| 08B1-0 | 12.7 | 7.92 | 7.85 | 3.96 | 17.8 | 19.1 | 11.8 | 1.6 | 18 |
| 10B1-0 | 10.16 | 7.4 | 9.4 | 5.08 | 20.8 | 22.4 | 14.7 | 1.7 | 22.4 |
| 12B1-0 | 19.05 | 12.07 | 11.68 | 5.72 | 23.6 | 25.3 | 16 | 1.85 | 29 |
| 16B1-0 | 25.4 | 15.88 | 17.02 | 8.28 | 38.1 | 40.6 | 21 | 3.1/4.1 | 60 |

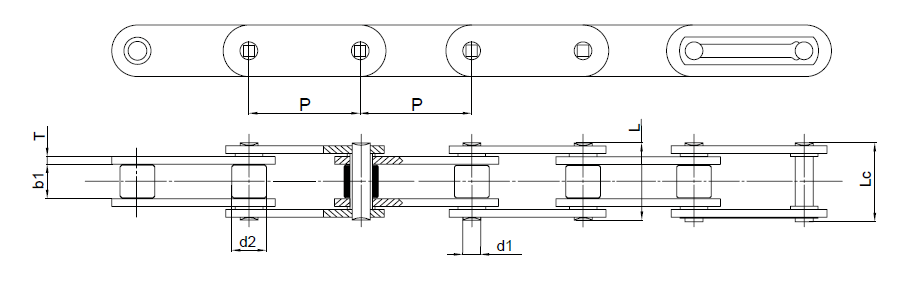

o-ring with Straight Side Plates
| Chain No. | Pitch P mm | Roller Diameter d2 max mm | Width Between Inner Plates b1 min mm | Pin Diameter d1 max mm | Plates Thickness T mm | Inner Plates Depth h2 max mm | Pin Length | Ultimate Tensile Strength kN | Weight Per Metre kg/m | |
|---|---|---|---|---|---|---|---|---|---|---|
| L max mm | Lc max mm | |||||||||
| C2040-OR | 25.40 | 7.920 | 7.85 | 3.96 | 1.5 | 12.00 | 18.30 | 19.60 | 17.80 | 0.60 |
| C2050-OR | 31.75 | 10.16 | 9.40 | 5.09 | 2.03 | 15.09 | 24.80 | 26.00 | 29.20 | 0.82 |
| C2060-OR | 38.10 | 11.91 | 12.57 | 5.94 | 2.42 | 18.08 | 30.40 | 31.90 | 41.60 | 1.17 |
| C2080-OR | 50.80 | 15.88 | 15.75 | 7.94 | 3.25 | 24.13 | 35.50 | 37.00 | 72.00 | 2.13 |
| C2100-OR | 63.50 | 19.05 | 18.95 | 9.53 | 4.00 | 30.00 | 43.20 | 47.00 | 110.20 | 3.10 |
| C2120-OR | 76.20 | 22.23 | 25.22 | 11.11 | 4.80 | 35.70 | 54.00 | 57.50 | 158.20 | 4.70 |
